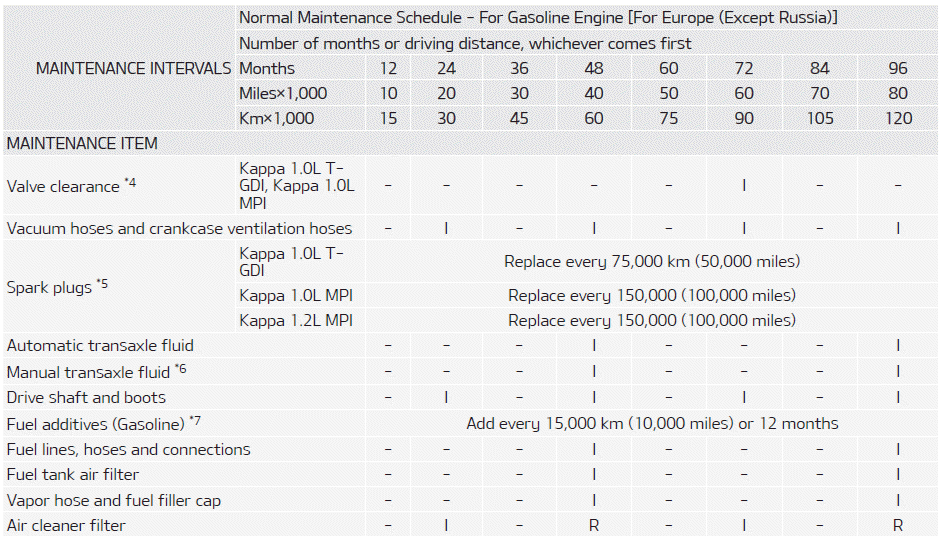

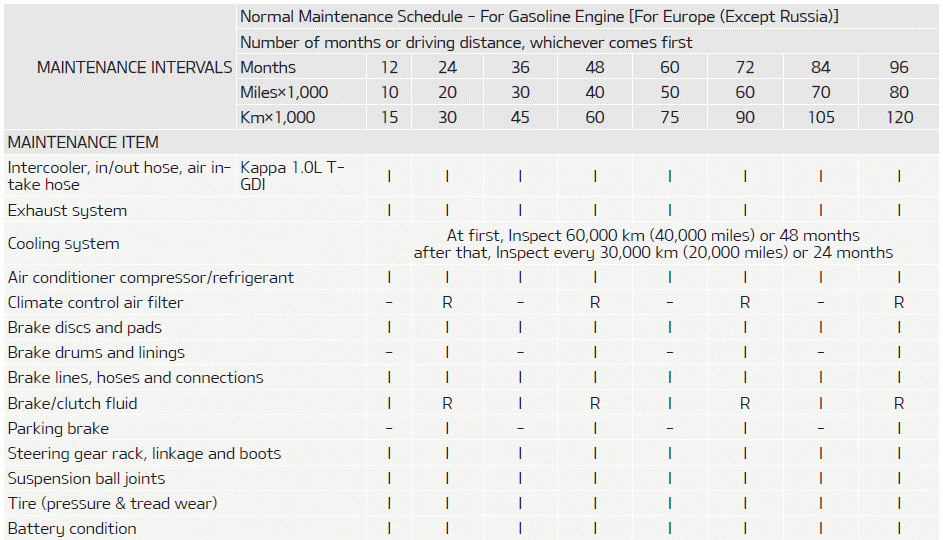

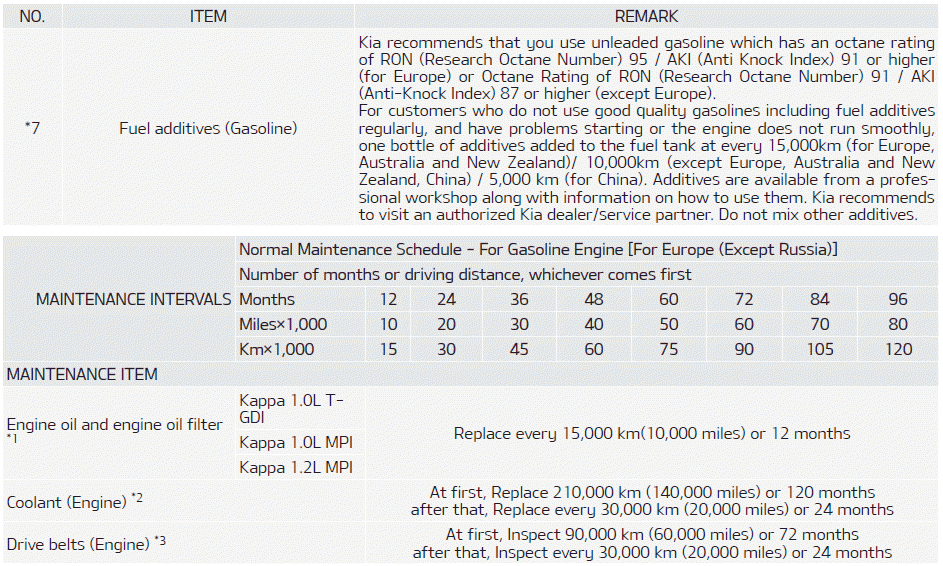

Kia Picanto: Scheduled maintenance service / Normal Maintenance Schedule - For Gasoline Engine [For Europe (Except Russia)]

Kia Picanto JA 2017-2024 Owner's Manual / Maintenance / Scheduled maintenance service / Normal Maintenance Schedule - For Gasoline Engine [For Europe (Except Russia)]

The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is determined by whichever occurs first.

I: Inspect and if necessary, adjust, correct, clean or replace.

R: Replace or change.

Scheduled maintenance service precaution

Follow the Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, follow the Maintenance Under ...

Maintenance Under Severe Usage Conditions - For Gasoline Engine [For Europe (Except Russia)]

Maintenance operation I : Inspect and if necessary, adjust, correct, clean or replace. R : Replace or change. SEVERE DRIVING CONDITIONS A: Repeatedly driving short distance of less than 8 km ...
