Kia Picanto: Manual Transaxle System / Neutral Switch

Kia Picanto JA 2017-2024 Service & Repair Manual / Manual Transaxle System / Manual Transaxle System / Neutral Switch

Specifications

Item	Specified
Type	ON / OFF
Operating condition	Neutral gear
Operating voltage	10 V - 15 V
Operating temperature	-30°C to 100°C (-30°F to 212°F)

Components and components location

Component Location

1. Neutral switch

Description and operation

Description

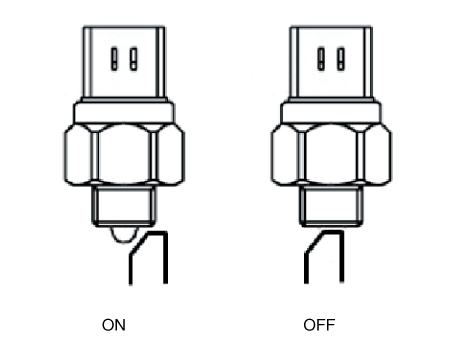

•	Neutral switch signal is transmitted to ECM in neutral state.

•	The signal is blocked when gear is changed.

•	When the signal is blocked, the ECM controls the fuel injection amount mapping value for 1st gear so that vehicle can start properly.

Repair procedures

Inspection

1.	Remove the battery and battery tray. G 1.0 T-GDI KAPPA (Refer to Engine Electrical System - "Battery")

2.	Disconnect the neutral switch connector (A).

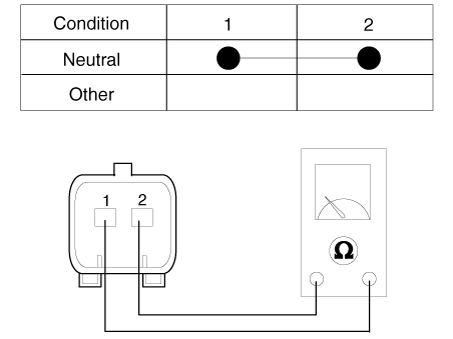

3.	Check the continuity between power terminal and signal terminal.

Removal

1.	Remove the battery and battery tray. G 1.0 T-GDI KAPPA (Refer to Engine Electrical System - "Battery")

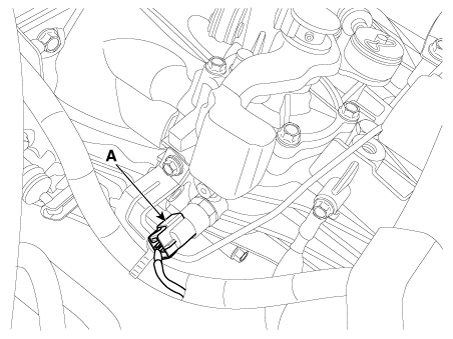

2.	Disconnect the neutral switch connector (A).

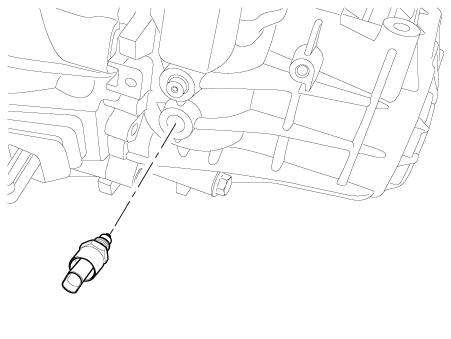

Remove the neutral switch (A).

Tightening torque:

39.2 - 58.9 N·m (4.0 - 6.0 kgf·m, 28.9 - 43.4 lb·ft)

Installation

1.	Install in the reverse order of removal.

The neutral switch must be replaced with new one. (Do not reuse it.)
