Kia Picanto: Audio / Multimedia Jack

Kia Picanto JA 2017-2024 Service & Repair Manual / Body Electrical System / Audio / Multimedia Jack

Schematic diagrams

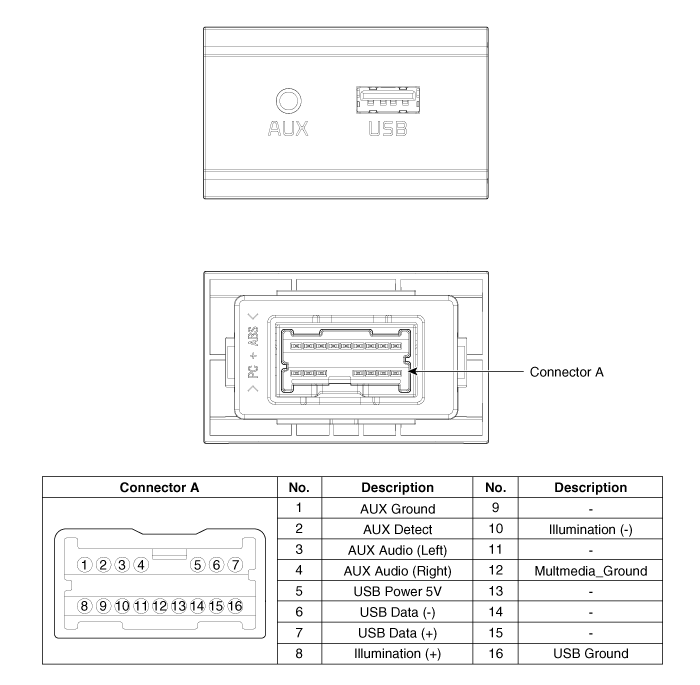

Circuit Diagram

Description and operation

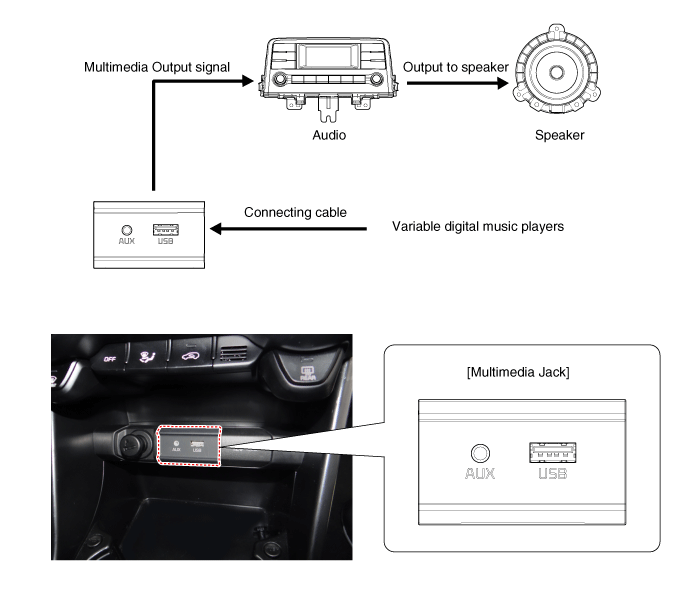

Description

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distorted sound coming from the AUX-linked external music players, the audio unit may not be defective but the output level of the player does not match the specification of the AUX.

Repair procedures

Removal

Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Disconnect the negative (-) battery terminal.

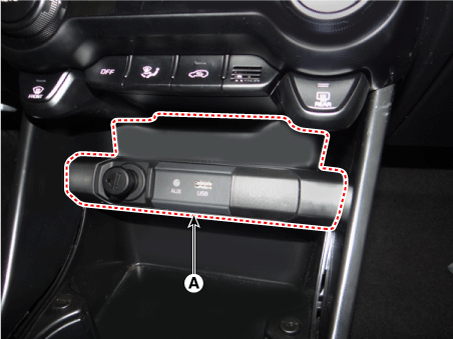

2.	Using a screwdriver or remover, remove the floor console front bezel (A).

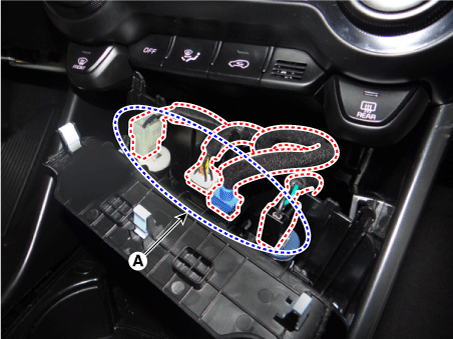

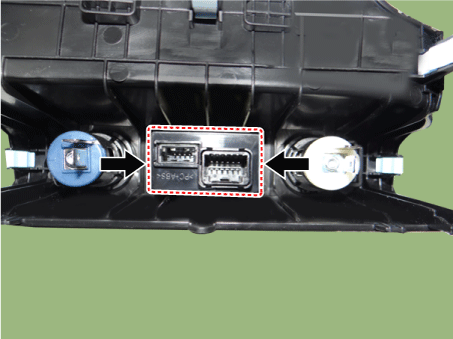

3.	Disconnect the connectors (A) from floor console front bezel.

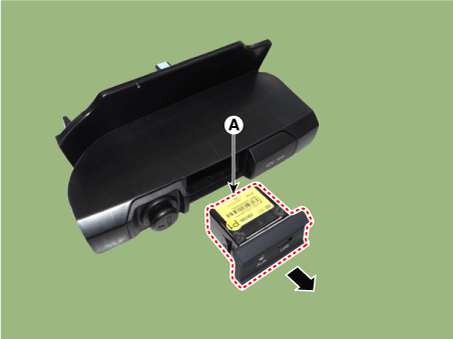

4.	Remove the multimedia jack (A) after releasing the fixed hooks.

Installation

1.	Install the multimedia jack.

2.	Connect the connectors from the floor console front bezel.

3.	Install the floor console front bezel.

Connect the negative (-) battery terminal.

•	Make sure the multimedia connector and the console front tray connectors are plugged in properly.

•	Check the audio system for normal operation.
