| Replacement |
| 1. | Disconnect the battery negative cable. |
| 2. | Remove the crash pad lower panel. (Refer to Body - "Crash pad lower panel") |

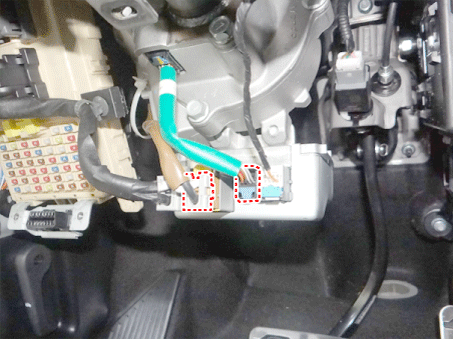

| 3. | Disconnect the MDPS ECU connector.
|
| 4. | Disconnect all connectors connected to the steering column. |

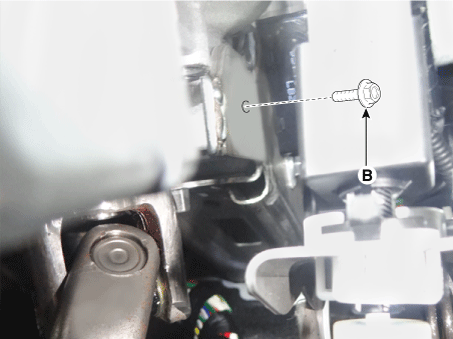

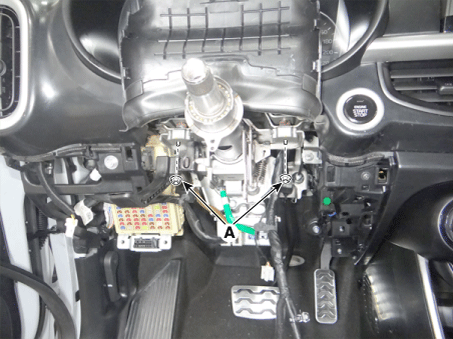

| 5. | Loosen the nuts (A) and bolt (B) and then remove the steering column assembly.
|

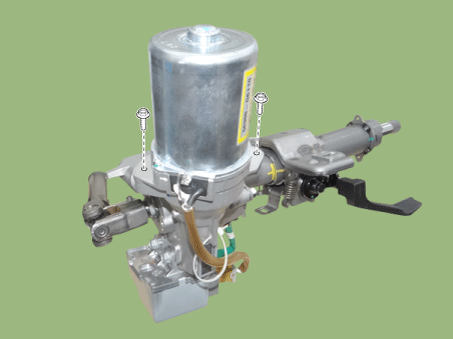

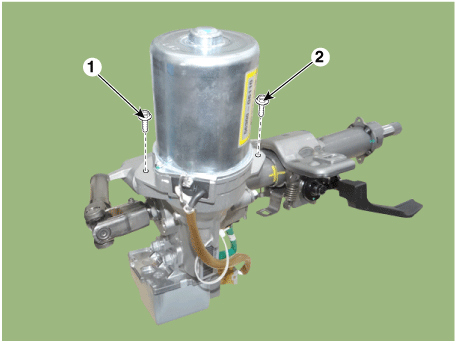

| 6. | Loosen the MDPS motor bolts and then remove the MDPS motor.
|

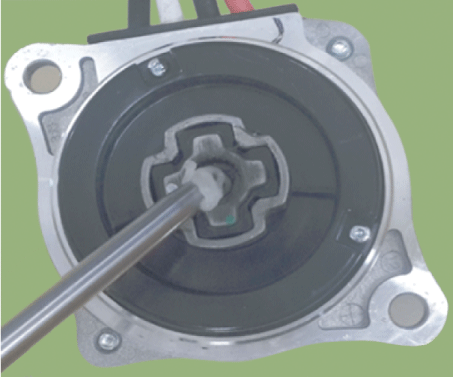

| 7. | Apply the grease at the new MDPS motor.
|
| 8. | Install the MDPS motor.
|
| 9. | Installation is the reverse of the removal. |
| 10. | Perform the "Steering Angle Sensor (SAS) Calibration" and "Set the steering feel torque to zero". |
| 11. | Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine. |
| Diagnosis with KDS |
|
| 1. | Connect
self-diagnosis connector (16pins) located under the driver side crash
pad to self-diagnosis device, and then turn the self-diagnosis device
after key is ON. |
| 2. | Select the "vehicle model" and "Motor Driven Power Steering" on KDS vehicle selection screen. |

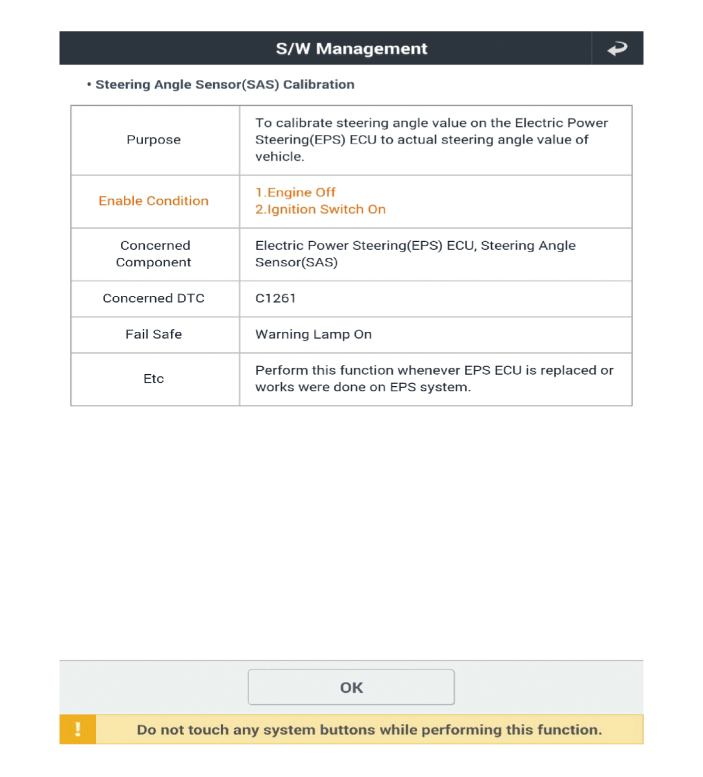

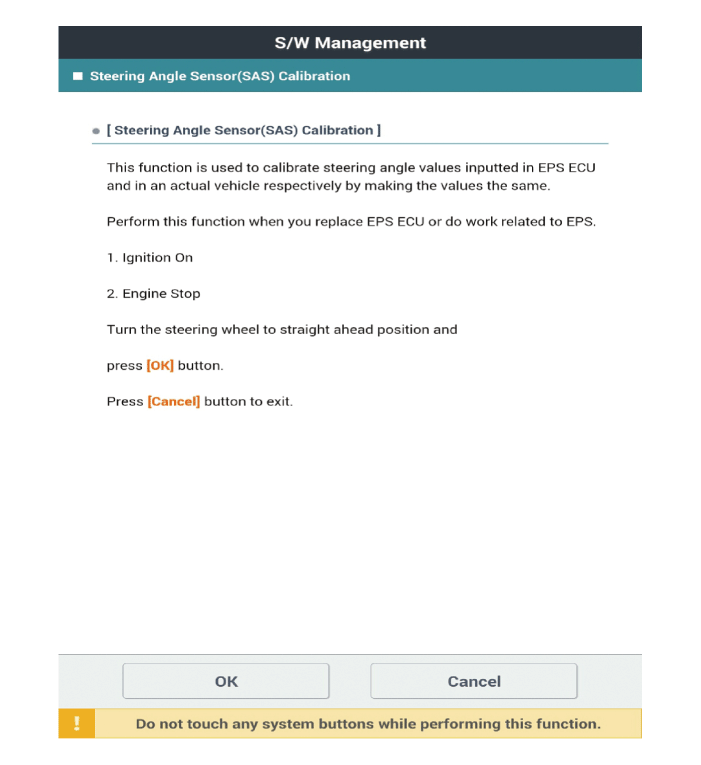

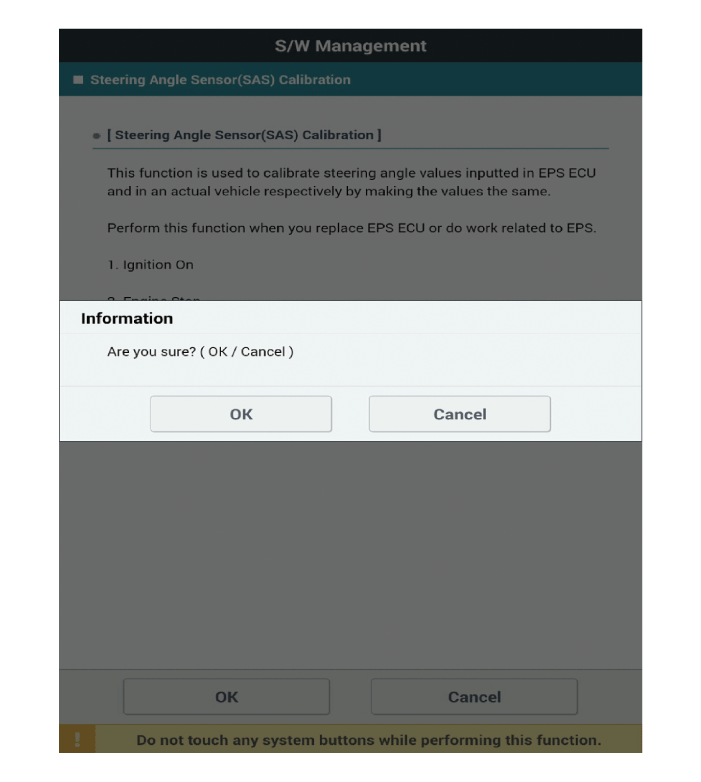

| 3. | Select the "Steering Angle Sensor (SAS) Calibration" on KDS screen, then select OK. |
| 4. | Proceed with the test according to the screen instructions.
|

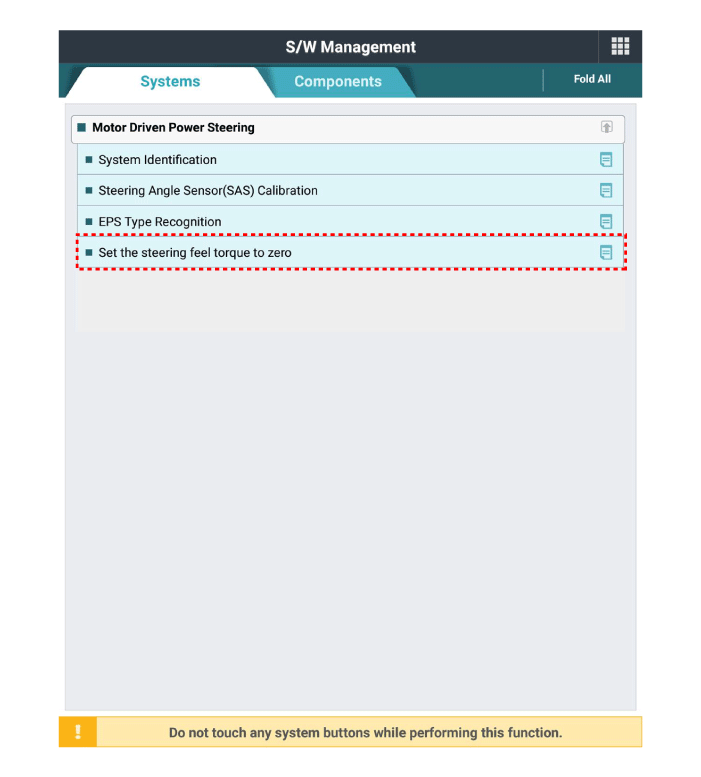

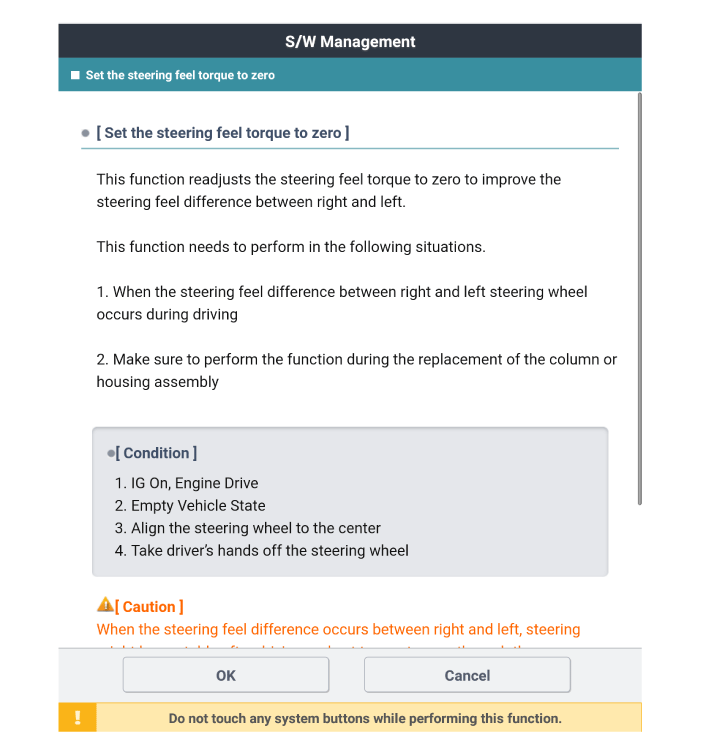

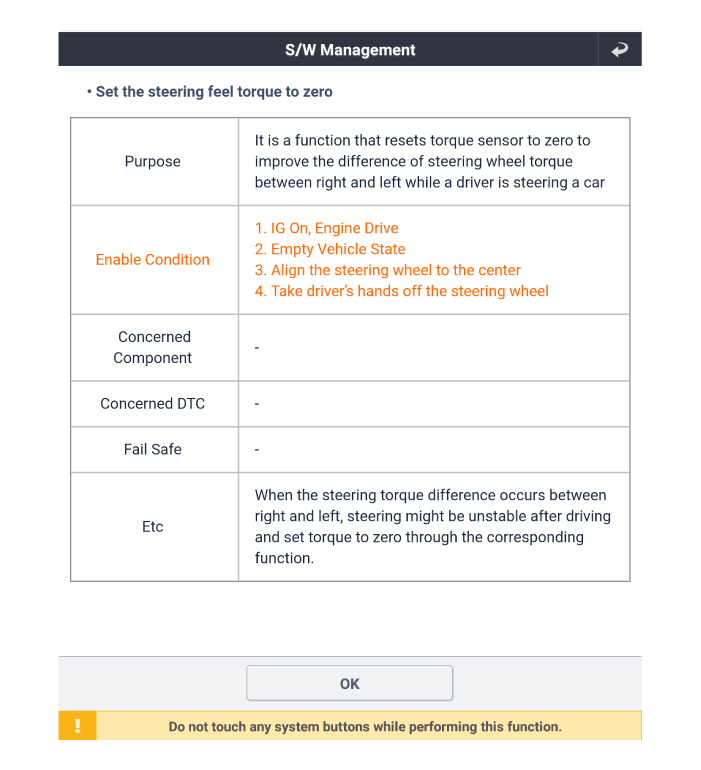

| 5. | Select the "Set the steering feel torque to zero" on KDS screen, then select OK. |

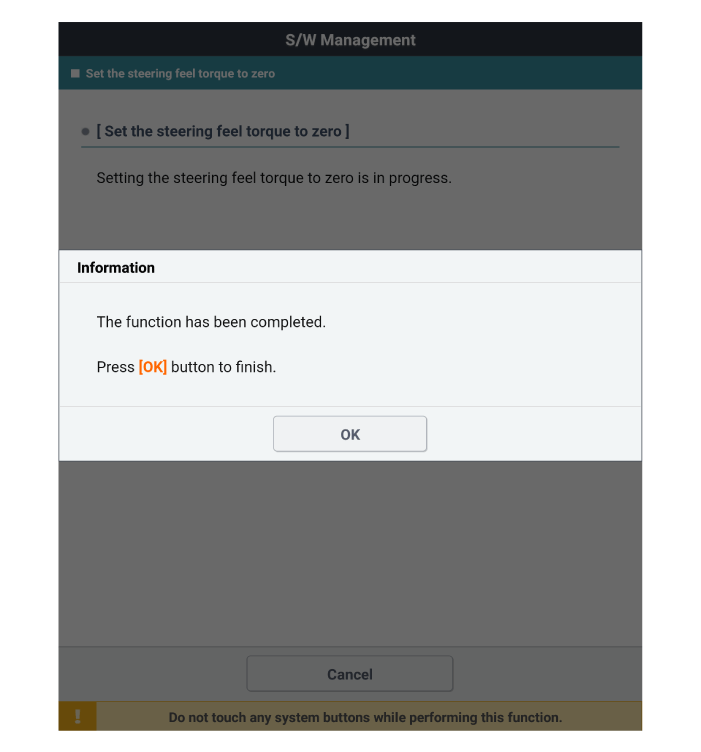

| 6. | Proceed with the test according to the screen instructions.
|

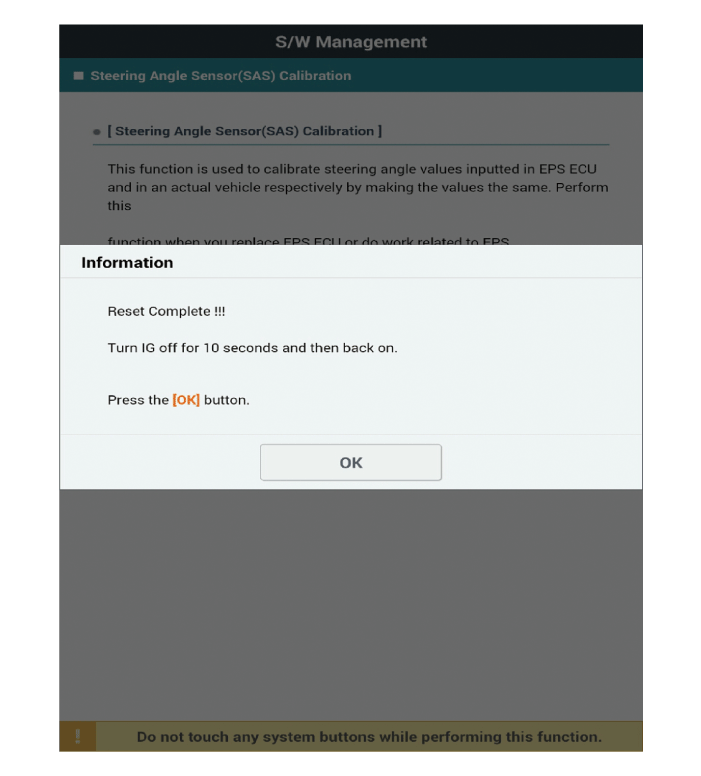

| 7. | Remove the DTC. |
| 8. | Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly. |
