Kia Picanto: Light bulbs / Light bulb position (Rear)

Kia Picanto JA 2017-2024 Owner's Manual / Maintenance / Light bulbs / Light bulb position (Rear)

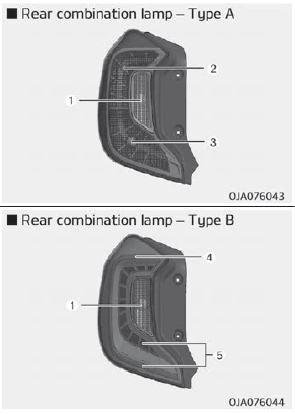

1. Rear turn signal lamp (Bulb type)
2. Tail lamp (BULB type)
3. Stop and tail lamp (BULB type)
4. Tail lamp (LED type)
5. Stop and tail lamp (LED type)

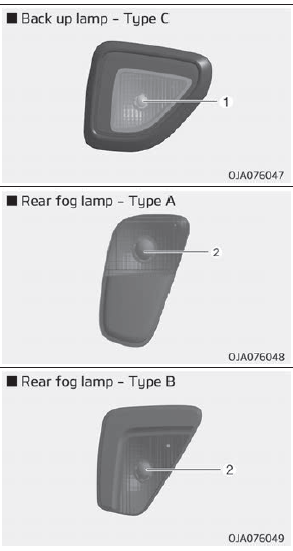

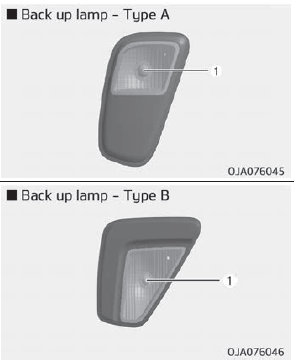

1. Back up lamp (Bulb type)

2. Rear fog lamp (BULB type)
