Kia Picanto: Fuses And Relays / Junction Box (Engine Compartment)

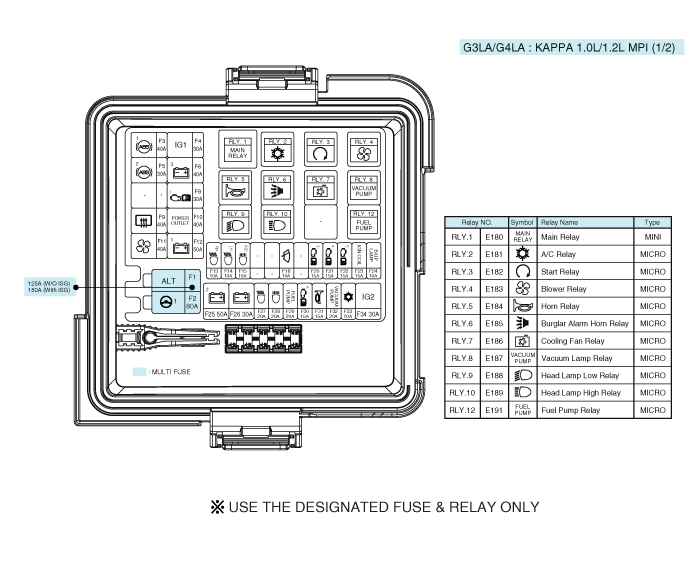

Components and components location

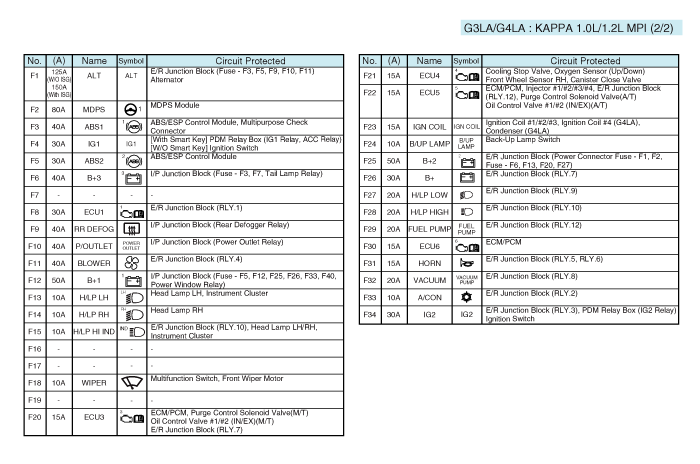

Circuit (E/R Junction Block) |


Circuit (E/R Junction Block) |

Repair procedures
1. | Disconnect the negative (-) battery terminal. |

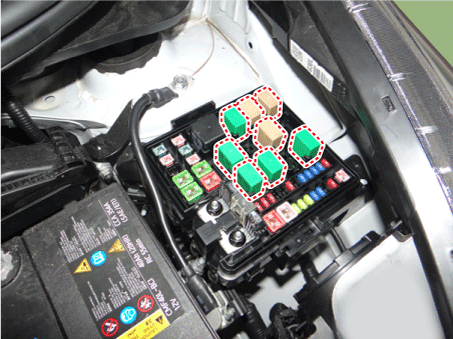

2. | Pull out the relay from the engine compartment relay block. |

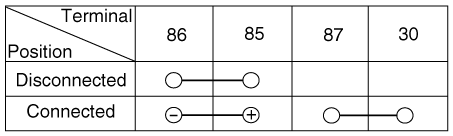

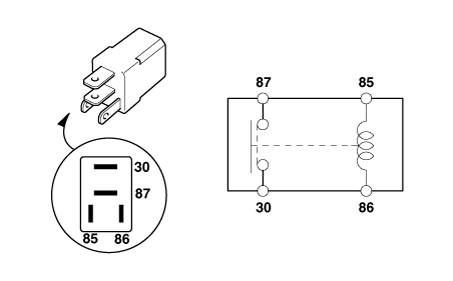

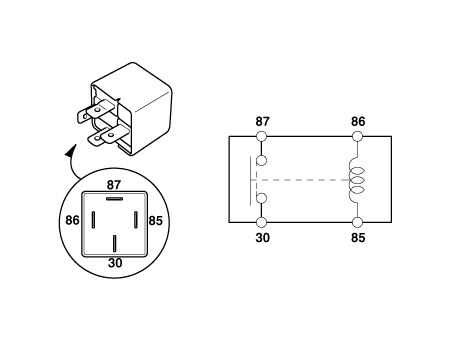

Power Relay (Type A)
Check for continuity between the terminals.
1. | After
supplying power to between No. 85 and 86 power relay terminals, check
that there is continuity between No. 30 and 87 terminals. |
2. | After
disconnecting power between No. 85 and 86 power relay terminals, check
that there is no continuity between No. 30 and 87 terminals. Engine Room Relay Block


 |

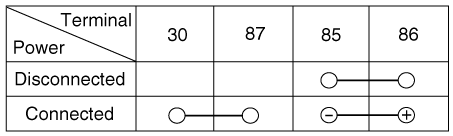

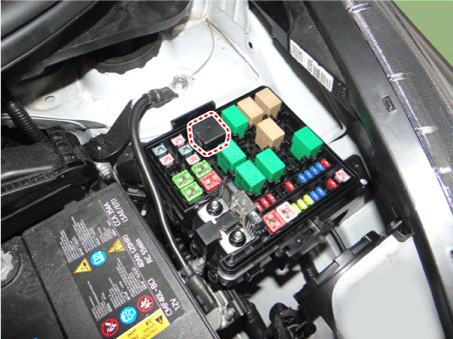

Power Relay (Type B)
Check for continuity between the terminals.
1. | After
supplying power to between No. 85 and 86 power relay terminals, check
that there is continuity between No. 30 and 87 terminals. |
2. | After
disconnecting power between No. 85 and 86 power relay terminals, check
that there is no continuity between No. 30 and 87 terminals.


 |
Fuse
1. | Check that the fuse holders are loosely held and that the fuses are securely fixed by the holders. |
2. | Check that each fuse circuit has the exact fuse capacity. |
3. | Check the fuses for any damage. •
| If
a fuse is to be replaced, be sure to use a new fuse of the same
capacity. Always identify the cause of the blown fuse and completely
eliminate the problem before installing a new fuse. |
|
|
Multi Fuse
1. | Disconnect the negative (-) battery terminal. |

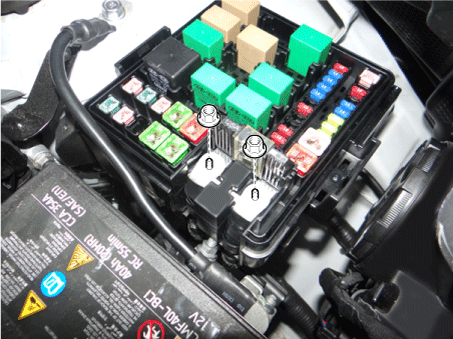

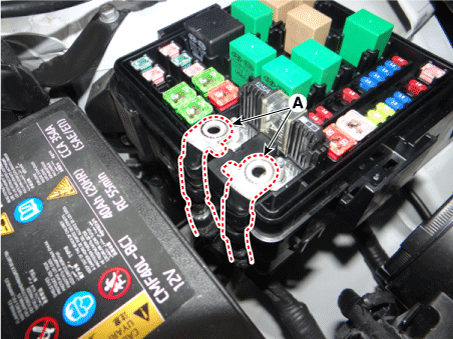

2. | Remove the power cable terminals (A) after loosening the nuts from the engine room fuse & relay box.

 |

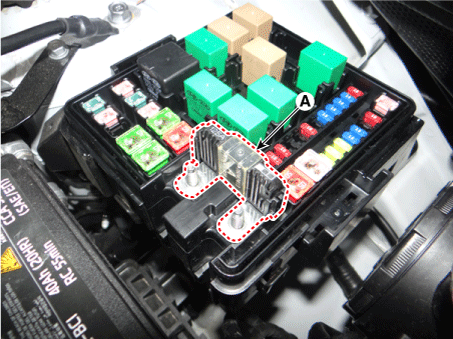

3. | Remove the multi fuse (A) after pushing the hook.
 •
| The entire multi fuse (A) has to be replaced even if only one fuse is damaged. |
•
| When
replacing it, refer to “the Engine compartment- component location”
diagram to check fuse capacities and circuit arrangement. |
•
| Use the multi fuse of the exact fuse capacity for each circuit. |
|
|
Components and components location
Component Location
[Engine Room]
1. Engine room relay block
[Interior Relay]
1. Interior junction block
...
Components and components location
Component Location
I/P Junction Box
Circuit (I/P Junction Box)
Description and operation
Description
Communication Network Diagram
...
