Kia Picanto: ISG (Idle Stop & Go) System / ISG OFF switch

Kia Picanto JA 2017-2025 Service & Repair Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / ISG OFF switch

Components and components location

Components

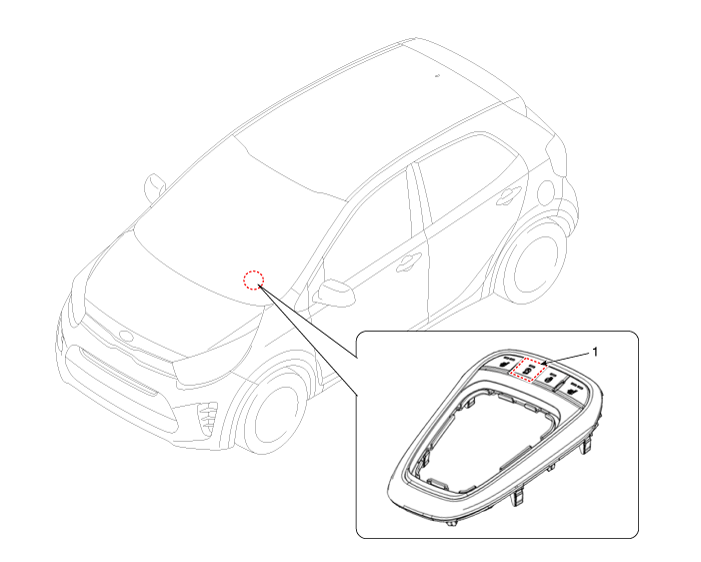

1. ISG OFF switch

Description and operation

Description

The ISG OFF switch on the floor console can be used to deactivate the ISG function.

Schematic diagrams

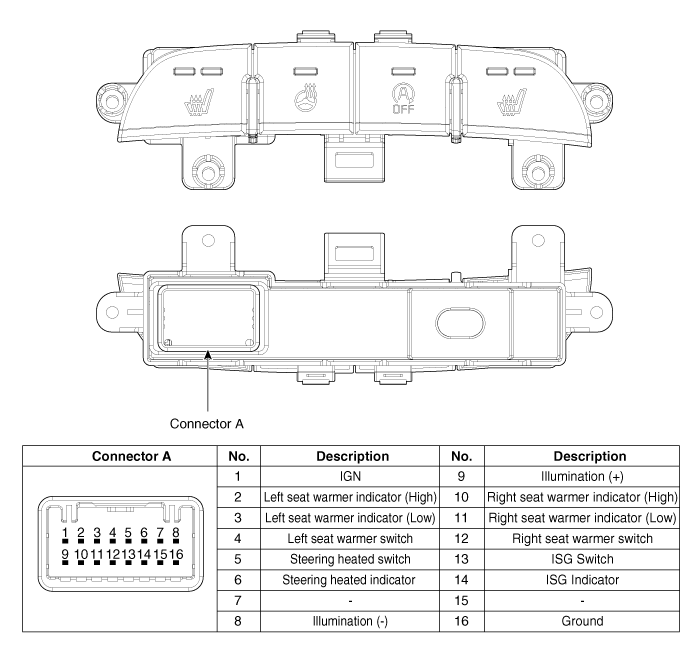

Circuit Diagram

Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the battery negative (-) terminal.

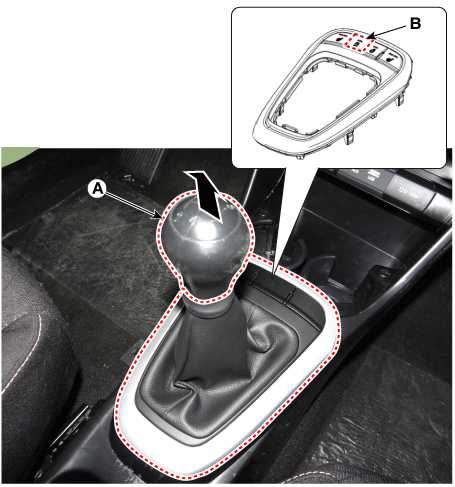

2.	Remove the knob (A) by pulling it in the direction of arrow.

3.	Using a remover, remove the console indicator cover assembly (B).

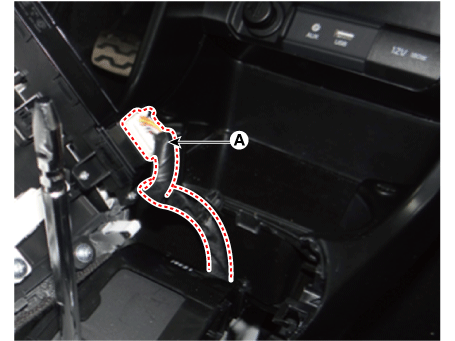

4.	Disconnect the connector (A) from the console indicator cover assembly.

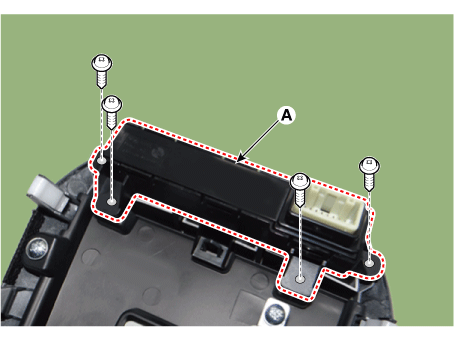

5.	Remove the console upper cover switch (A) after loosening the mounting screws.

Installation

1.	Install the console upper cover switch.

2.	Connect the console indicator cover assembly connector.

3.	Install the console indicator cover assembly.

4.	Install the gear knob & gear boots.

5.	Connect the negative (-) battery terminal.
