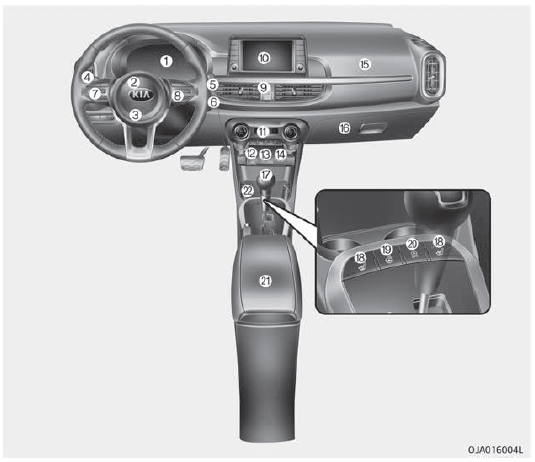

1. Instrument cluster
2. Horn
3. Driver’s front air bag
4. Light control/Turn signals
5. Wiper/Washer
6. Ignition switch
ENGINE START/STOP button
7. Steering wheel audio control
8. LCD window control
Cruise control
Speed limit control
9. Hazard warning flasher switch
10. Audio
11. Manual climate control system
Automatic climate control system
12. Cigarette lighter
13. AUX, USB port
14. Power outlet
15. Passenger’s front air bag
16. Glove box
17. Shift lever M/T
18. Seat warmer
19. Heated steering wheel switch
20. ISG (Idle Stop and Go) button
21. Center console storage
22. Cup holder

Interior overview
1. Inside door handle 2. Door lock/unlock button 3. Outside rearview mirror folding switch 4. Outside rearview mirror control switch 5. Central door lock switch 6. Power window lock button ...

Engine compartment
1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake / clutch fluid reservoir 4. Air cleaner 5. Fuse box 6. Negative battery terminal 7. Positive battery terminal 8. Engine oi ...
