Kia Picanto: Features of your vehicle / Instrument cluster

Kia Picanto JA 2017-2025 Owner's Manual / Features of your vehicle / Instrument cluster

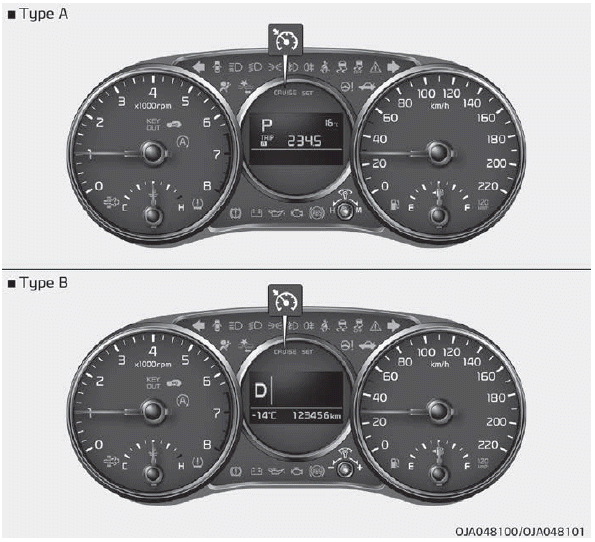

1. Tachometer

2. Speedometer

3. Engine coolant temperature gauge

4. Fuel gauge

5. Warning and indicator lights

6. LCD display

❈ The actual cluster in the vehicle may differ from the illustration. For more details refer to the “Gauges” on page 4-45.
