Description and operation
| Description |
An
ignition coil is an induction coil in an engine's ignition system which
transforms the battery's low voltage to the high voltage needed to
create an electric spark in the spark plugs to ignite the fuel. Coils
have an internal resistor while others rely on a resistor wire or an
external resistor to limit the current flowing into the coil from the
battery 12 V supply.
Schematic diagrams

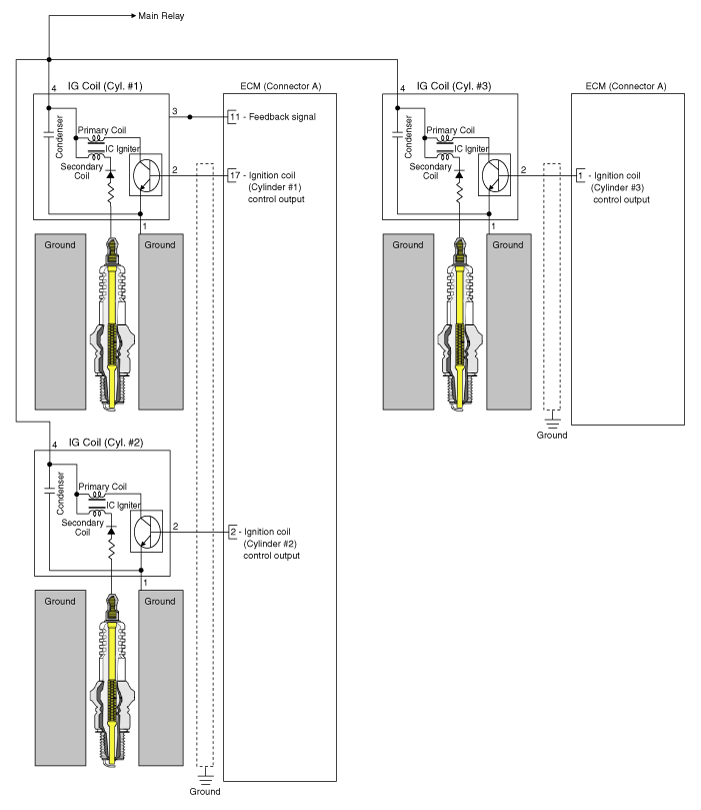

| Circuit Diagram |
| [A/T] |
| [M/T] |

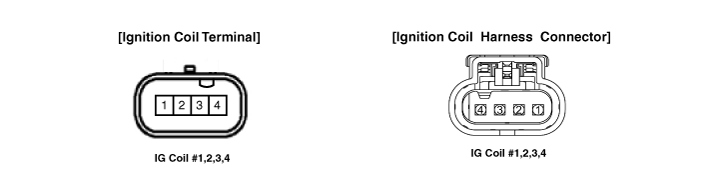

| Connector View |
| Ignition Coil Terminal Function |
[A/T]
Ignition Coil (Cylinder #1)
|
Pin No.
|
Description
|
Connected to
|
| 1 | Ground | Chassis |
| 2 | ignition Coil #1 Control output | ECM K(57) |
| 3 | - | |
| 4 | Battery power (B+) | Main Relay |
Ignition Coil (Cylinder #2)
|
Pin No.
|
Description
|
Connected to
|
| 1 | Ground | Chassis |
| 2 | ignition Coil #2 Control output | ECM K(91) |
| 3 | - | |
| 4 | Battery power (B+) | Main Relay |
Ignition Coil (Cylinder #3)
|
Pin No.
|
Description
|
Connected to
|
| 1 | Ground | Chassis |
| 2 | ignition Coil #3 Control output | ECM K(74) |
| 3 | - | |
| 4 | Battery power (B+) | Main Relay |
[M/T]
Ignition Coil (Cylinder #1)
|
Pin No.
|
Description
|
Connected to
|
| 1 | Ground | Chassis |
| 2 | ignition Coil #1 Control output | ECM A(17) |
| 3 | - | |
| 4 | Battery power (B+) | Main Relay |
Ignition Coil (Cylinder #2)
|
Pin No.
|
Description
|
Connected to
|
| 1 | Ground | Chassis |
| 2 | ignition Coil #2 Control output | ECM A(2) |
| 3 | - | |
| 4 | Battery power (B+) | Main Relay |
Ignition Coil (Cylinder #3)
|
Pin No.
|
Description
|
Connected to
|
| 1 | Ground | Chassis |
| 2 | ignition Coil #3 Control output | ECM A(1) |
| 3 | - | |
| 4 | Battery power (B+) | Main Relay |
Repair procedures
| Removal |
| 1. | Turn ignition switch OFF and disconnect the negative (-) battery terminal. |
| 2. | Remove the air cleaner.
(Refer to Engine Mechanical System - "Air Cleaner")
|

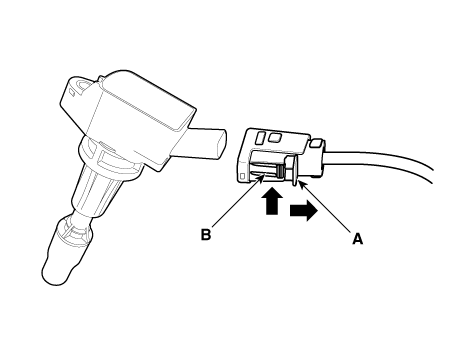

| 3. | Disconnect the ignition coil connector (A). |
| 4. | Remove the ignition coil (B) after loosening the mounting bolts.
|
| Installation |
| 1. | Install in the reverse order of removal. |
Ignition System
Description and operation
Description
Ignition timing is controlled by the electronic control ignition timing system.
The
standard reference ignition timing data for the engine operating
...
Spark Plug
Specifications
Specification
Item
Specification
Type ELR11ISPC8+ Gap 0.7 - 0.8 mm (0.028 - 0.31 in.)
