Kia Picanto: ISG (Idle Stop & Go) System / Hood switch

Kia Picanto JA 2017-2023 Service & Repair Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Hood switch

Description and operation
Description
The hood switch is included as the influencing factors in the calculation of the ISG function. If the hood is open, the engine must not be started or stopped by the ISG function for safety reasons.
Repair procedures
Inspection
1.

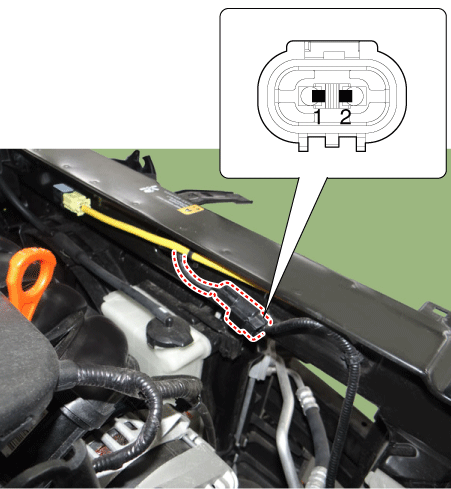

Disconnect the hood switch connector.

2.

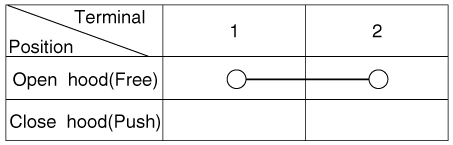

Check for continuity between the terminals and ground as shown below.
(Refer to Body - "Hood Latch Assembly")
