Kia Picanto: Lighting System / High Mounted Stop Lamp

Kia Picanto JA 2017-2024 Service & Repair Manual / Body Electrical System / Lighting System / High Mounted Stop Lamp

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Open the tailgate.

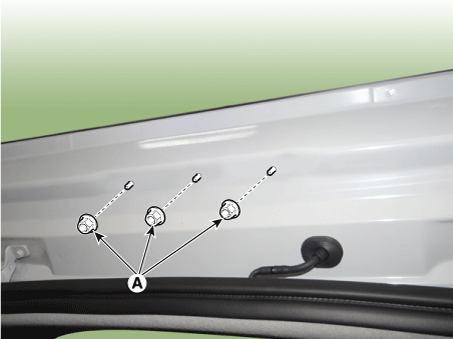

3.	Loosen the high mounted stop lamp mounting nuts (A).

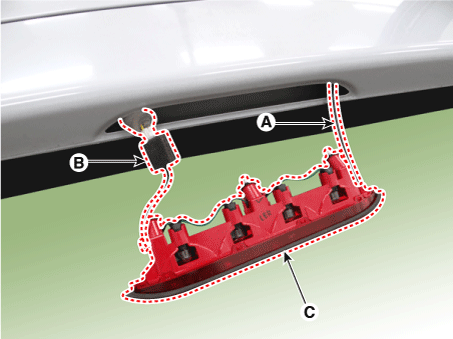

4.	Disconnect the washer nozzle (A) and high mounted stop lamp connector (B).

5.	Remove the high mounted stop lamp (C).

Installation

1.	Connect the washer nozzle and high mounted stop lamp connector.

2.	Install the high mounted stop lamp.

3.	Connect the negative (-) battery terminal.
