| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the heater unit.
(Refer to Heater - "Heater Unit")
|

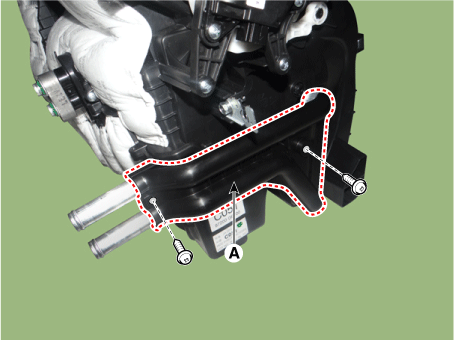

| 3. | Remove the heater core cover (A) after loosening the mounting screws.
|

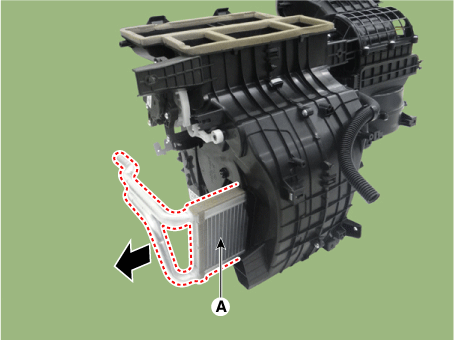

| 4. | Pull out the heater core (A) from the heater unit.
|
| 5. | Install in the reverse order of removal.
|
Components and components location Component Location 1. Mode Control Actuator Description and operation Description The mode control actuator is located at the heater unit.
Repair procedures Replacement 1.Disconnect the negative (-) battery terminal. 2.Remove the heater unit. (Refer to Heater - "Heater Unit") 3.
Components and components location Component Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3.Remove the steering column shroud lower panel.
Specifications Specifications Smart Key Unit Items Specification Rated voltage DC 12 V Operating voltage DC 9 - 16 V Operating temperature -31 - 167°F (-35 - 75°C) Load Max. 4mA (When welcome light function "OFF") RF Receiver Items
