Kia Picanto: Steering wheel / Heated Steering wheel

Kia Picanto JA 2017-2025 Service & Repair Manual / Steering System / Steering wheel / Heated Steering wheel

Description and operation

Description

The heated steering wheel system improves the thermal comfort of the driver by heating the steering wheel when manually selected.

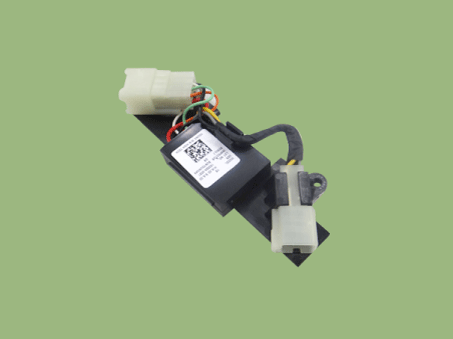

1.	Heated control unit

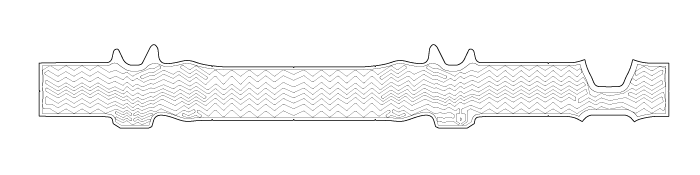

2.	Heated pad

Specifications

Item	Specification
Voltage	13.5 V ± 0.1V, 80W±10%
Heated pad resistance	1.85 ± 0.2 Ω (at 22°C ±1°C)
NTC resistance	10.0 kΩ ± 3% (at 23 - 27°C)

Schematic diagrams

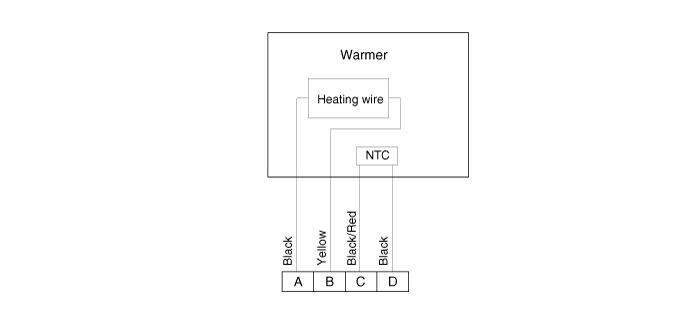

System Circuit Diagram

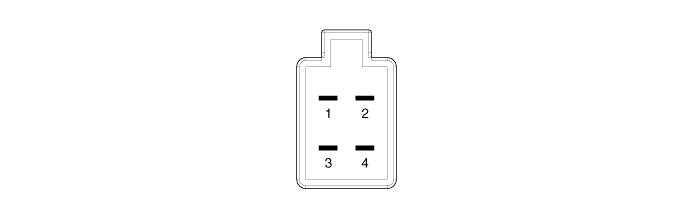

Harness Connector

Terminal Function

Housing	Pin	Function	Wire color
Pad	A	GND	Black
	B	HEATER	Yellow
	C	NTC+	Black / Red
	D	NTC¯	Black

Repair procedures

Inspection

1.	Measure a resistance of NTC and Heated pad. NTC resistance (Black / Red, Black) : 10.0 kΩ ± 3% (at 23 - 27°C) Heated pad resistance (Yellow) : 1.85 ± 0.2 Ω (at 22°C ±1°C)

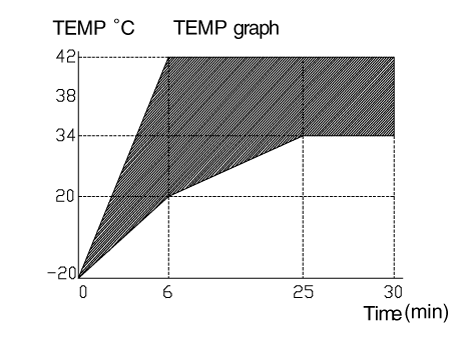

Measure a temperature.

–	The temperature of wheel surface grip must rise from -20°C to 20°C within 6 minute

–	The temperature of wheel surface grip must keep 38°C after 25 minute
