Kia Picanto: Lighting / Headlight leveling device
To adjust the headlight beam level according
to the number of the passengers
and loading weight in the luggage
area, turn the beam leveling switch.
The higher the number of the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper leveling position, or headlights
may dazzle other road users.

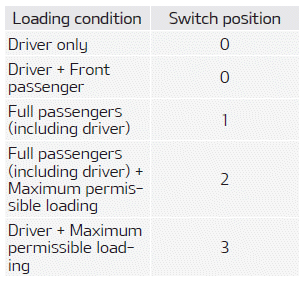

Listed below are the examples of proper
switch settings. For loading conditions
other than those listed below, adjust
the switch position so that the
beam level may be the nearest as the
condition obtained according to the list.
The Daytime Running Lights (DRL) can
make it easier for others to see the
front of your vehicle during the day.
DRL can be helpful in many different
driving conditions, and it is especially
...
A : Wiper speed control (front)
1. 2/HI – High wiper speed
2. 1/LO – Low wiper speed
3. ---/INT – Intermittent wipe
4. O/OFF – Off
5. /1X – Single wipe
B : Intermittent control w ...
