Components and components location

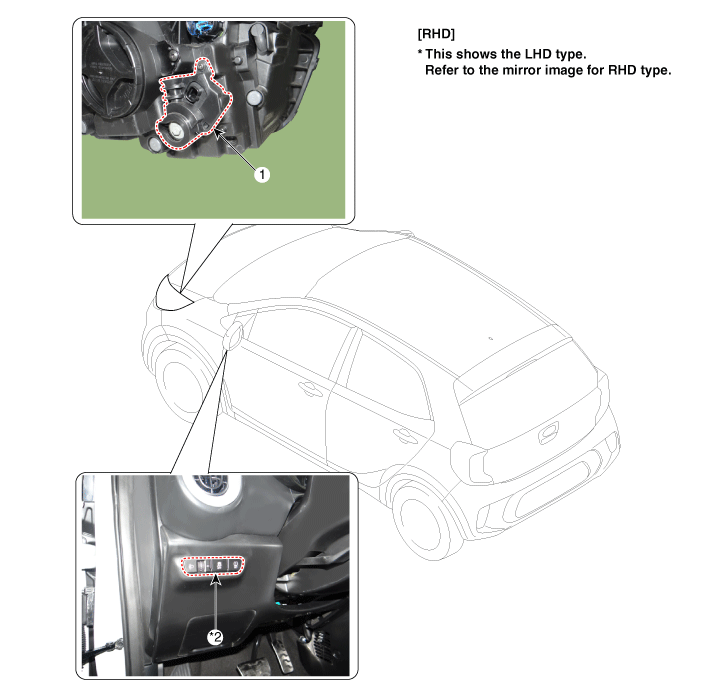

Component Location

1. Headlamp leveling actuator

2. Headlamp leveling switch

※ headlamp leveling actuator is built into the headlamp.
