Kia Picanto: Headlamp Leveling System / Headlamp Leveling Switch

Kia Picanto JA 2017-2025 Service & Repair Manual / Body Electrical System / Headlamp Leveling System / Headlamp Leveling Switch

Schematic diagrams

Circuit Diagram

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

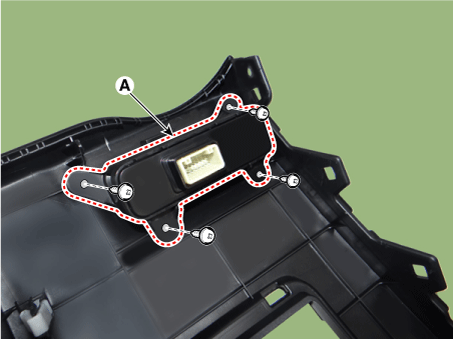

3.	Remove the crash pad side switch (A) after loosening the mounting screws.

Installation

1.	Install the crash pad side switch.

2.	Install the crash pad lower panel.

3.	Connect the negative (-) battery terminal.
