Kia Picanto: Fuses / Fuse/relay panel description

Kia Picanto JA 2017-2024 Owner's Manual / Maintenance / Fuses / Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Driver’s side fuse panel

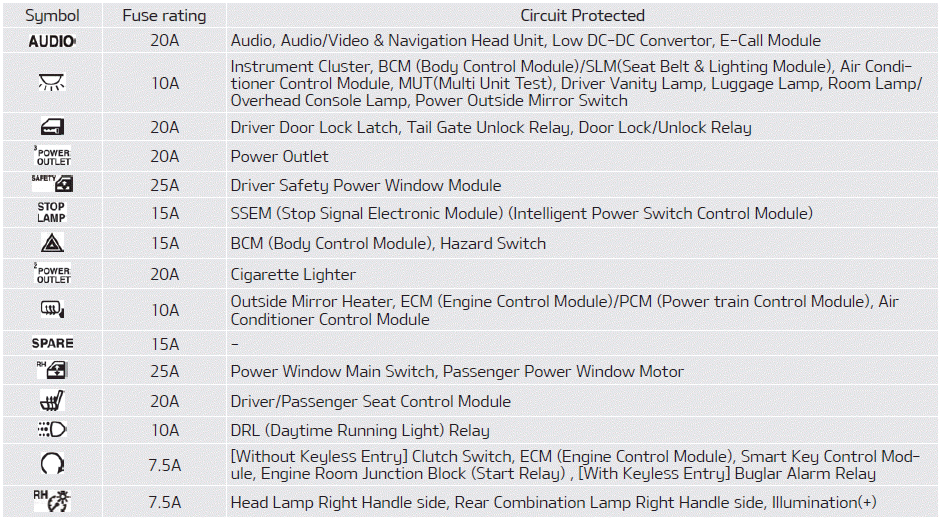

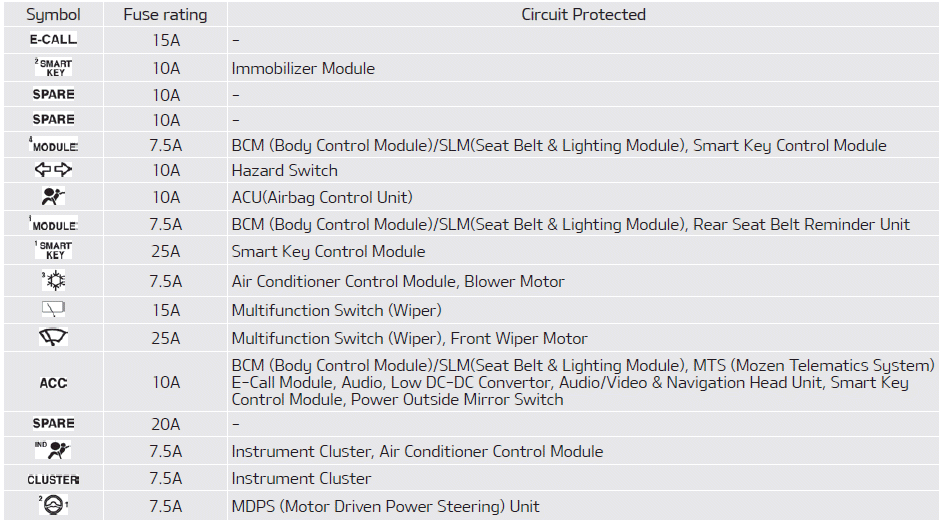

Instrument panel (Driver’s side fuse panel)

Engine compartment fuse panel

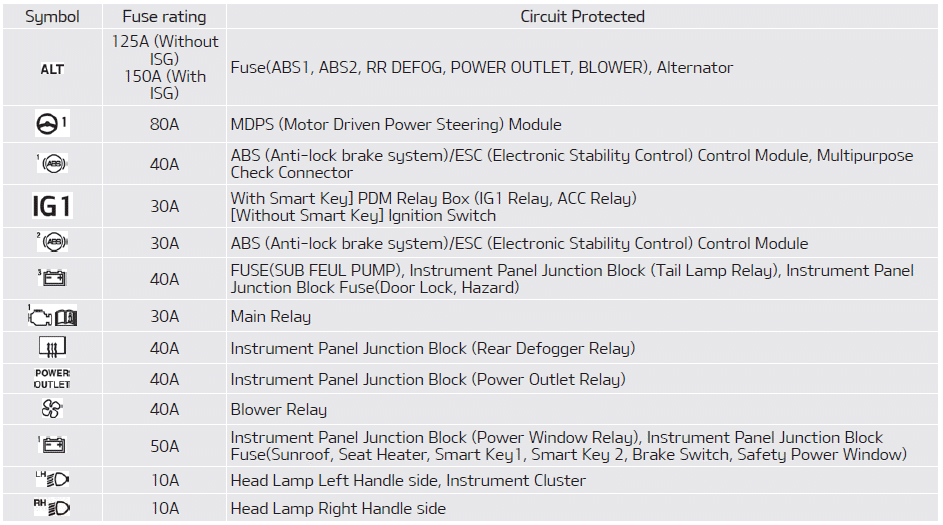

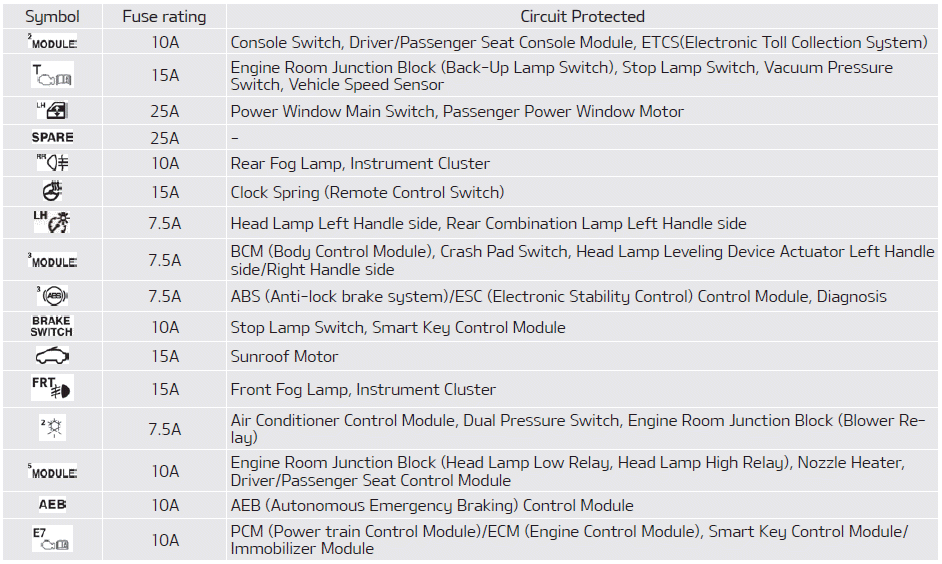

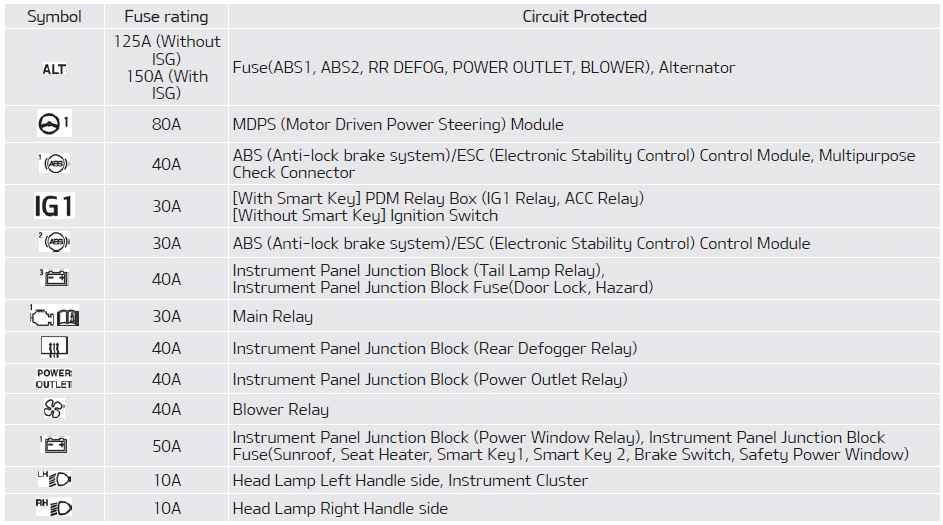

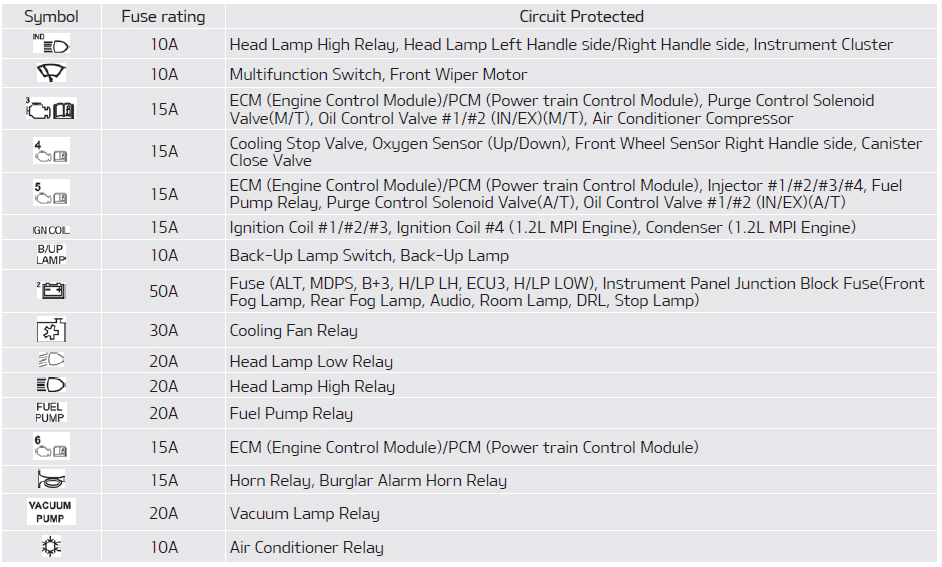

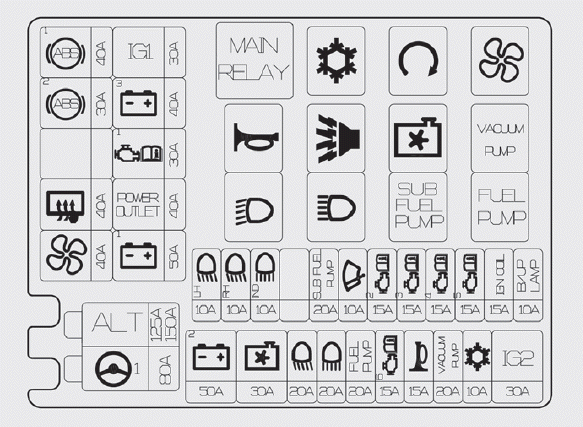

Engine room compartment fuse panel (Kappa 1.0L/1.2L MPI Engine (Gasoline))

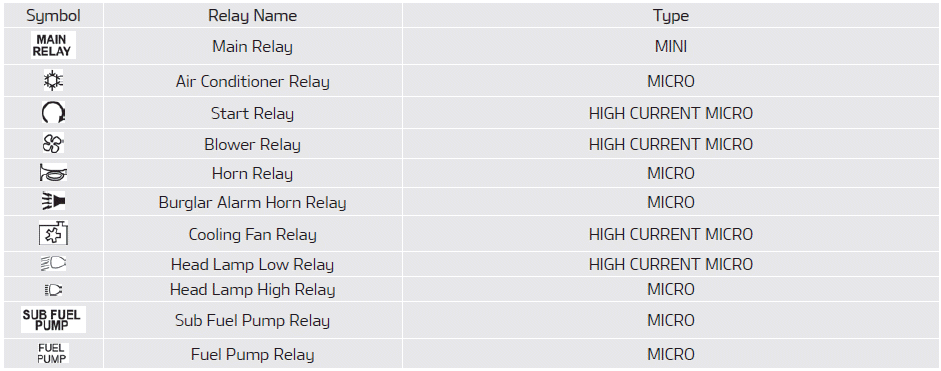

Relay (Kappa 1.0L/1.2L MPI Engine (Gasoline))

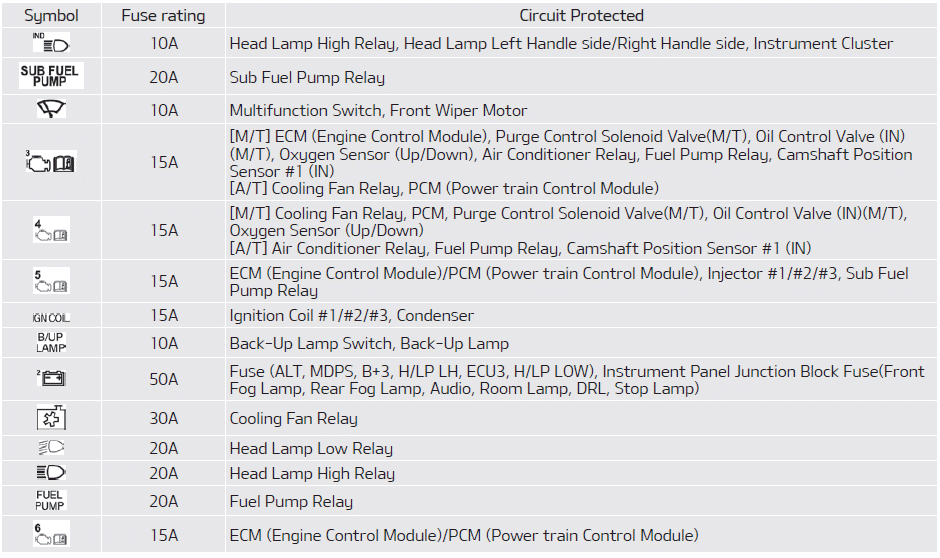

Engine room compartment fuse panel (Kappa 1.0L MPI Engine (FFV))

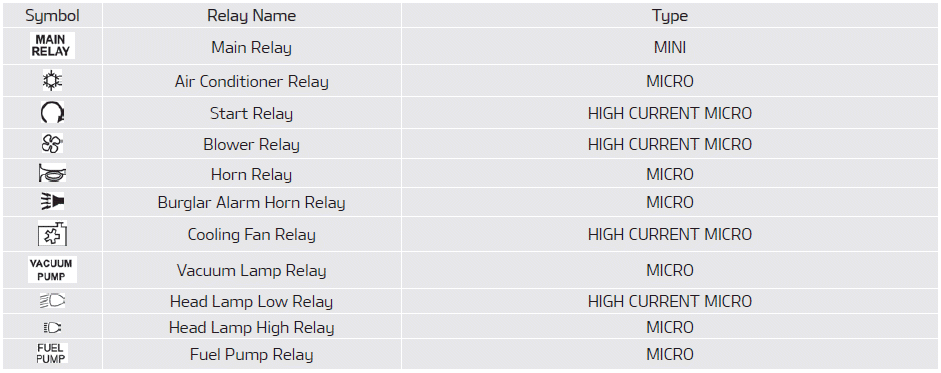

Relay (Kappa 1.0L MPI Engine (FFV))

Engine compartment fuse replacement

1. Turn the ignition switch and all other switches off. 2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by u ...
