Kia Picanto: Fuel Delivery System / Fuel Pressure Regulator

Kia Picanto JA 2017-2024 Service & Repair Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Regulator

Repair procedures

Removal

1.	Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump")

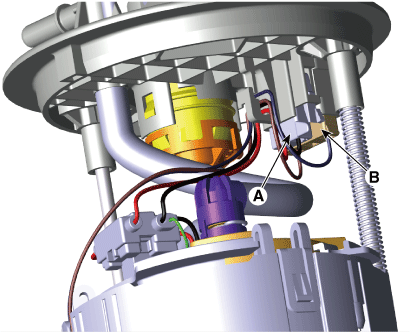

2.	Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

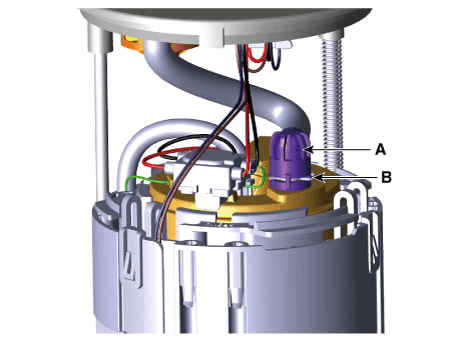

3.	Disconnect the fuel feed tube quick-connector (A) after removing the fixing clip (B).

4.	Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.

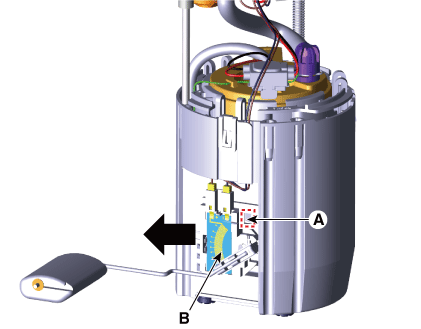

5.	Press the fixing hook (A) with a driver and then remove fuel sender in the arrow direction.

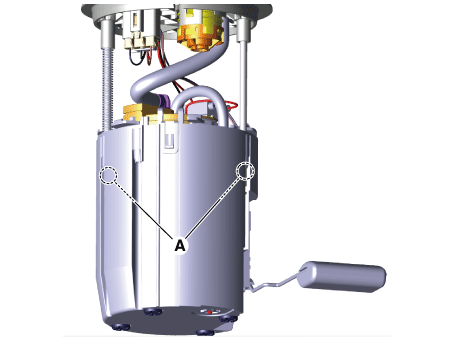

6.	Remove the reservoir-cup (B) after releasing the fixing hooks (A).

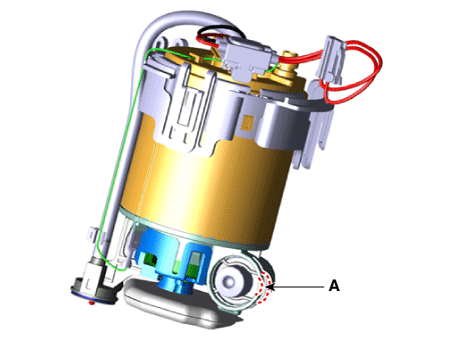

7.	Remove the fuel pressure regulator fixing clip (A).

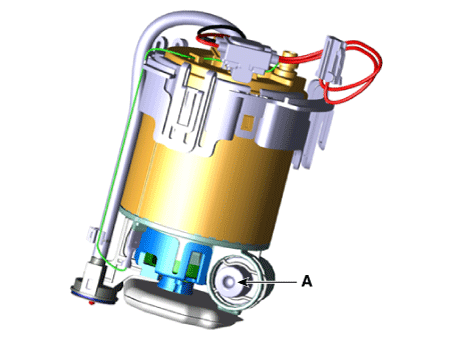

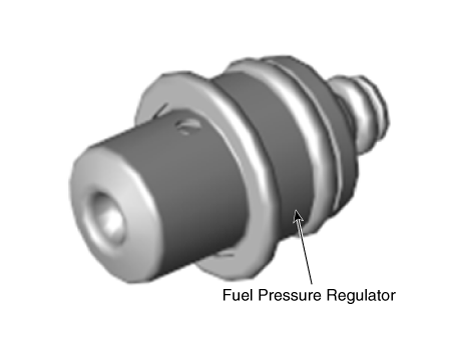

8.	Remove the fuel pressure regulator (A) from the fuel filter.

Installation

1.	Install in the reverse order of removal.
