Kia Picanto: Lighting System / Front Fog Lamps

Kia Picanto JA 2017-2025 Service & Repair Manual / Body Electrical System / Lighting System / Front Fog Lamps

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front bumper assembly. (Refer to Body - "Front Bumper Assembly")

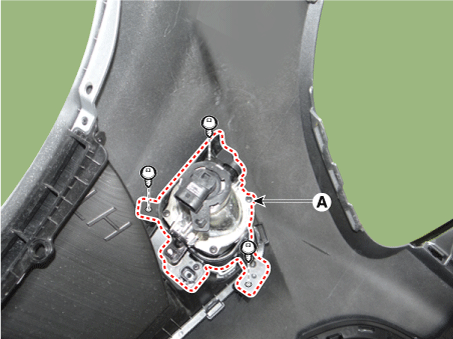

3.	Remove the front fog lamp assembly (A) after loosening the mounting screws.

Bulb Replacement

1.	Remove the engine room under cover. G 1.0 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover") G 1.2 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover")

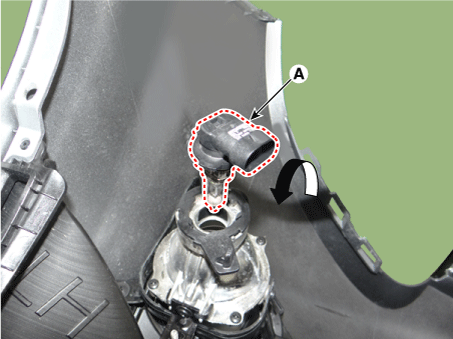

2.	Remove the front fog lamp socket (A) after turning in the counterclockwise direction.

Installation

1.	Install the front fog lamp assembly.

2.	Install the front bumper assembly.

3.	Connect the negative (-) battery terminal.
