Kia Picanto (JA): Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

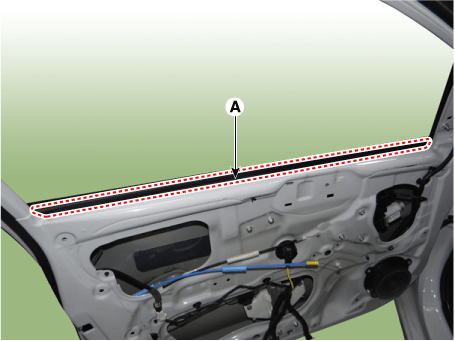

Remove the front door belt inside weatherstrip (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.

    Components and components location Component Location 1. Front door latch Repair procedures Replacement    Put on gloves to protect your hands.

    Repair procedures Replacement    Put on gloves to protect your hands.    • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
