| Removal and Installation |
| 1. | Remove the manual transaxle assembly.
(Refer to Manual Transaxle System - "Manual Transaxle")
|
| 2. | Remove the clutch cover.
(Refer to Clutch System - "Clutch Cover and Disc")
|

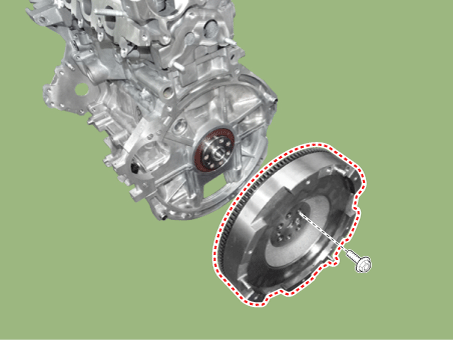

| 3. | Remove the flywheel (A).
|
| 4. | Install in the reverse order of removal. |
