Kia Picanto: Body (Interior and Exterior) / Floor Carpet

Kia Picanto JA 2017-2025 Service & Repair Manual / Body (Interior and Exterior) / Floor Carpet

Components and components location

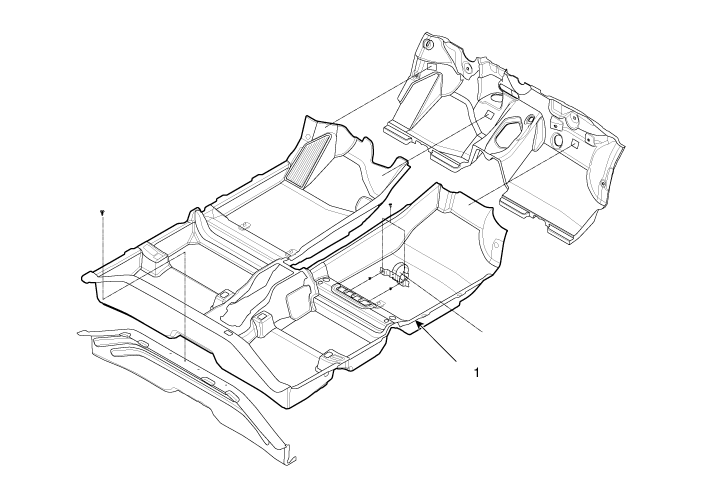

Component Location

1. Floor carpet assembly

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the console front complete assembly. (Refer to Floor Console - "Floor Console Assembly")

2.	Remove the accelerator pedal. (Refer to Engine Control System - "Accelerator Position Sensor (APS)")

3.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

4.	Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

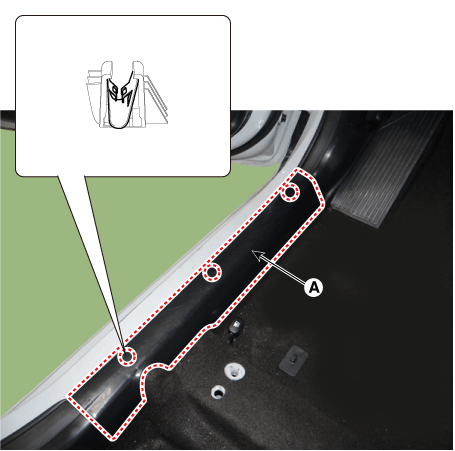

5.	Remove the front door scuff trim (A) by using a remover.

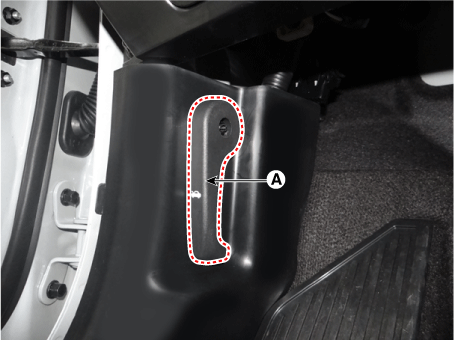

6.	Remove the hood latch release handle (A) by using a remover.

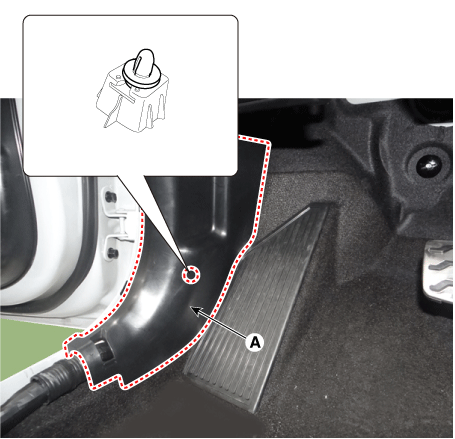

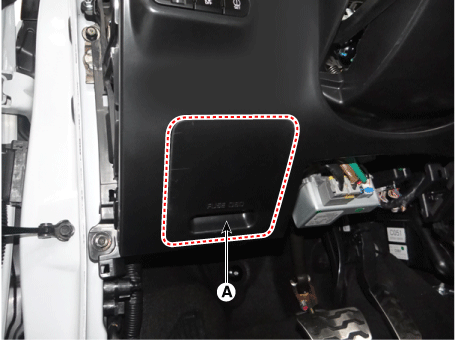

7.	Remove the cowl side trim (A) by using a remover.

8.	Remove the rear door scuff trim (A) after loosening the screws.

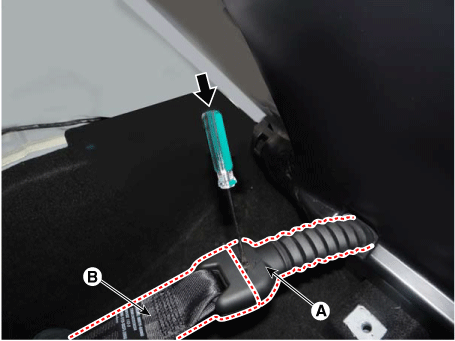

9.	Disconnect the seat belt (B) from the EFD system (A).

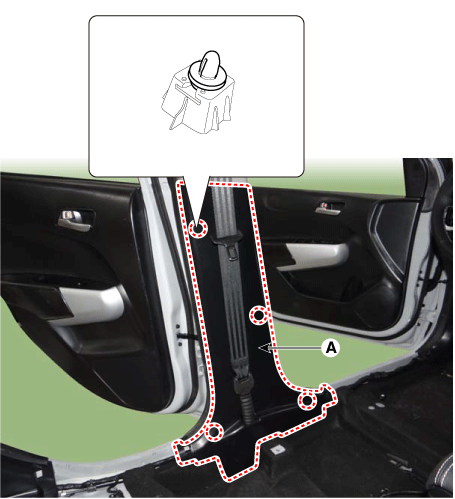

10.	Remove the center pillar lower trim (A) by using a remover.

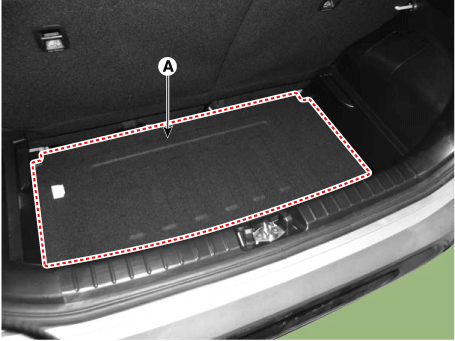

11.	Remove the luggage board (A).

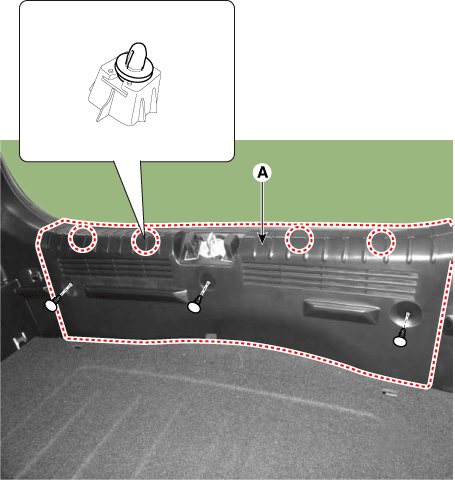

12.	Remove the rear transverse trim (A).

13.

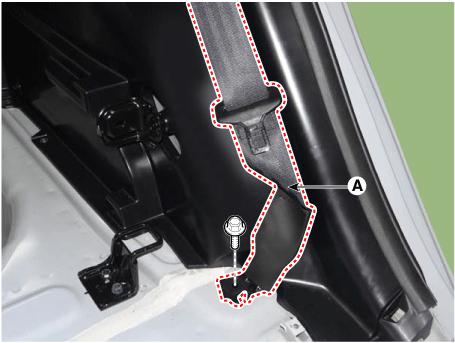

Separate the rear seat belt lower anchor (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

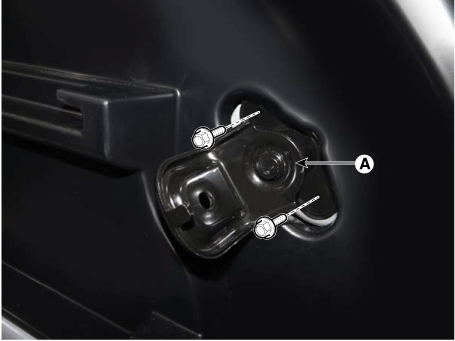

14.	Remove the rear seat folding bracket (A) after loosening the bolts.

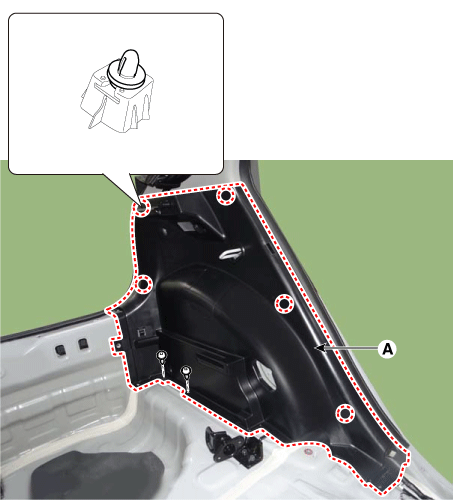

15.	Remove the luggage side trim (A) after loosening the mounting screws.

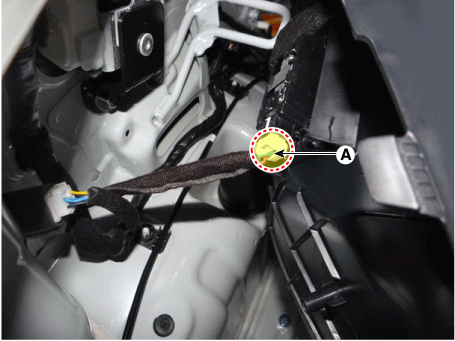

16.	Disconnect the luggage lamp connector (A).

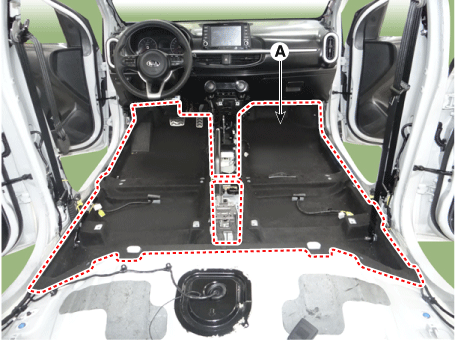

17.	Remove the floor carpet (A).

18.

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Replace any damaged clips.
