Kia Picanto: Emergency Call System / Emergency Call (eCall) Button

Kia Picanto JA 2017-2024 Service & Repair Manual / Body Electrical System / Emergency Call System / Emergency Call (eCall) Button

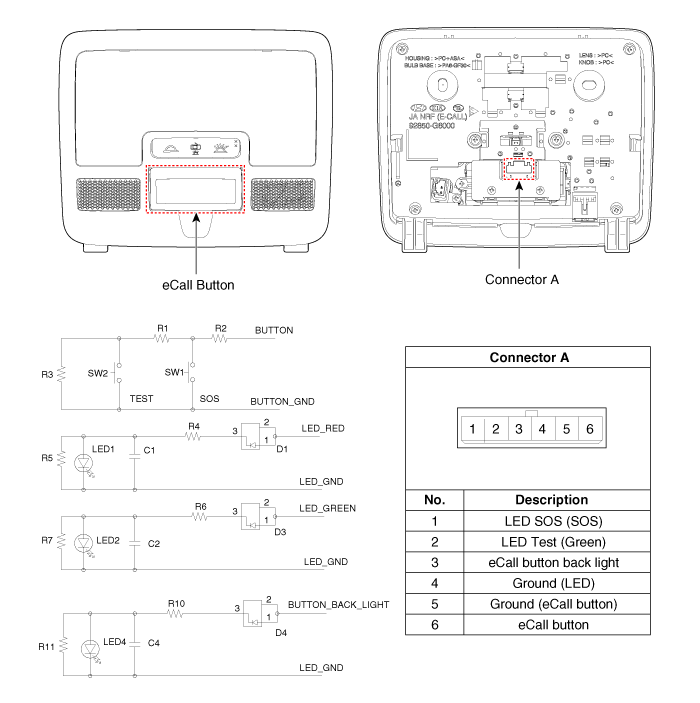

Components and components location

Component

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

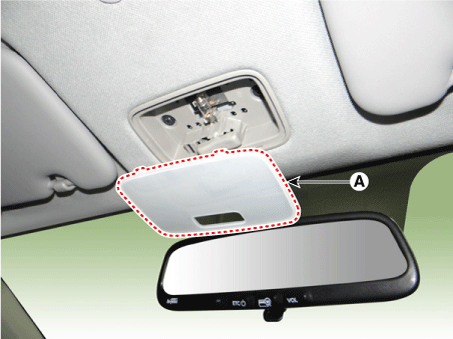

2.	Using a screwdriver or remover, separate the map lamp lens (A) from the map lamp.

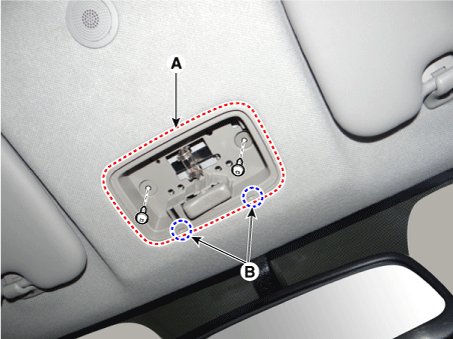

Remove the map lamp (A) after loosening the screws.

•	When removing the map lamp, be careful of the direction in which the tool is inserted (B).

•	When inserting the tool in the opposite direction, take caution as the map lamp may be damaged.

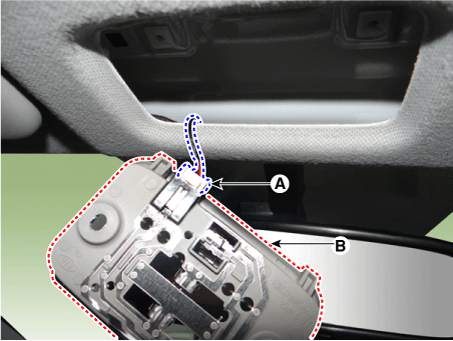

4.	Remove the map lamp assembly (B) after disconnecting the map lamp connector (A).

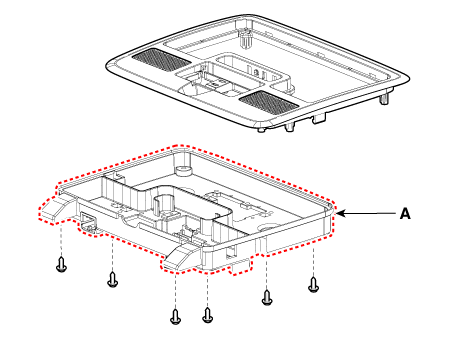

5.	Remove the map lamp cover (A) after loosening the mounting screws.

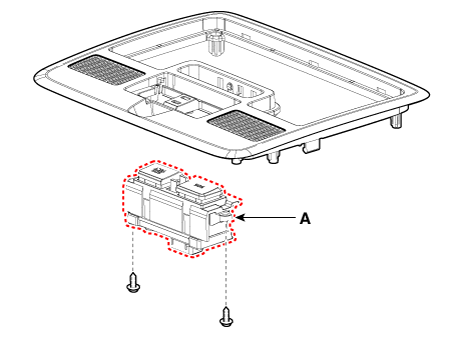

6.	Remove the eCall button (A) after loosening the mounting screws.

Installation

1.	Install the eCall button.

2.	Install the map lamp cover.

3.	Connect the map lamp connector.

4.	Install the map lamp.

5.	Install the map lamp lens.

6.	Connect the negative (-) battery terminal.
