Kia Picanto: Engine Control System / Electric Waste Gate Actuator (EWGA)
Specifications
Item
|
Specification
|
Max Current (A)
| < 6.0
|
Coil Resistance (Ω)
| 2.4 ± 0.36
|
Supply Voltage (V)
| 13.5
|
Supply Voltage Range (V)
| 9 - 16
|
Operating Frequency (kHz)
| 0.9 - 1.1
|
Item
|
Specification
|
Supply Voltage (V)
| 4 - 6
|
Description and operation

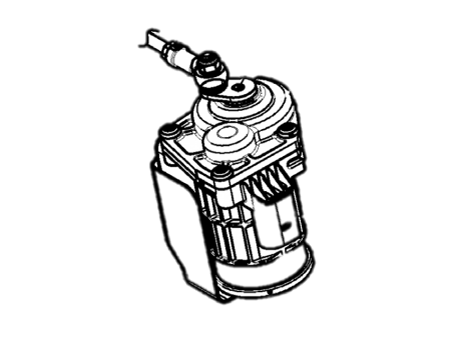

Installed
on the turbocharger, the Electric WGT Control Actuator operates the
vane in the Waste Gate Turbocharger (WGT) and regulates the amount of
compressed air by using the ECM's PWM signal. This actuator consists of a
DC motor which actuates the vane, a 2-step gear which increases torque
of the DC motor, a position sensor which detects status of the vane, and
an electric control unit which drives the DC motor.

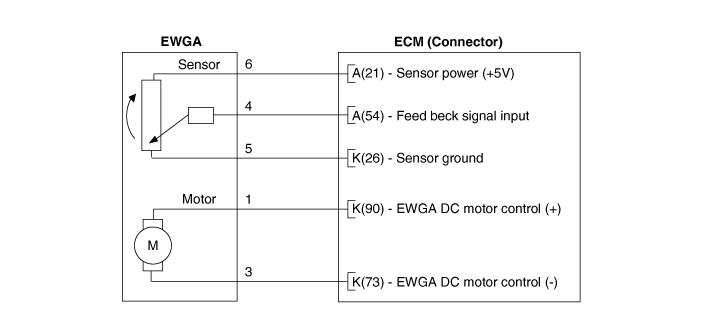

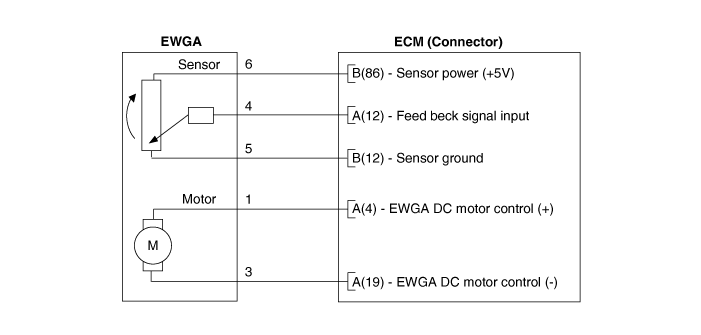

Schematic diagrams
