Kia Picanto (JA): Drive Belt System / Drive Belt Tensioner

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner

Repair procedures

Removal and Installation
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
2.
Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
3.

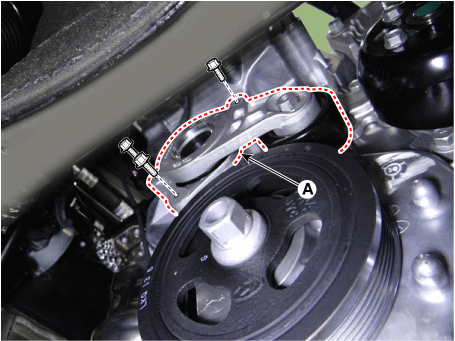

Remove the drive belt tensioner (A).
Tightening torque :
19.6 - 26.5 N·m (2.0 - 2.7 kgf·m, 14.5 - 19.5 lb·ft)

4.
Install in the reverse order of removal.
Inspection
Check the belt tensioner for excessive foreign substances, crack, damage or sticking of pivot shaft. Replace if necessary.
