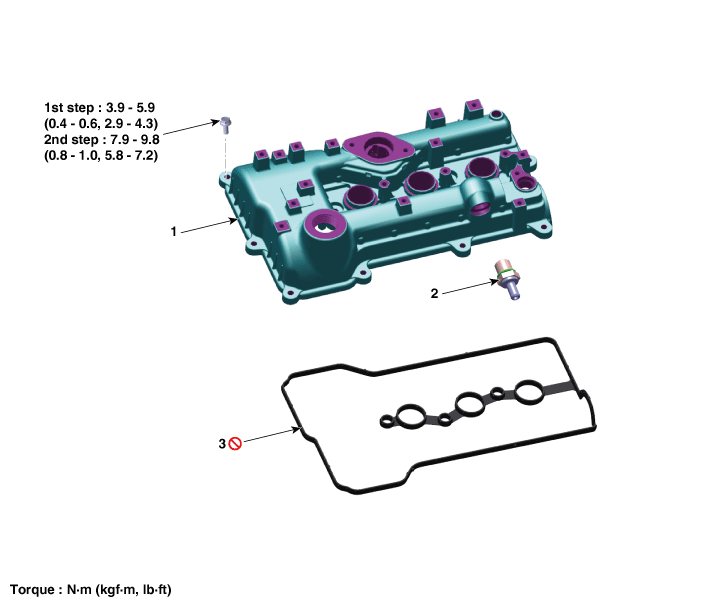

| Components |

| 1. Oil filler cap 2. Cylinder head cover | 3. Cylinder head cover gasket |
| Removal |
|
Mark all wiring and hoses to avoid misconnection. |
| 1. | Disconnect the battery negative terminal. |
| 2. | Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
|
| 3. | Drain the engine coolant.
(Refer to Cooling System - "Coolant")
|
| 4. | Disconnect
the wiring connectors and harness clamps and remove the wiring
protector around the intake manifold and cylinder head cover.
|
| 5. | Disconnect the fuel hose (A).
|
| 6. | Remove the heated oxygen sensor (HO2S).
(Refer to Engine Control / Fuel System - "Heated Oxygen Sensor (HO2S)")
|
| 7. | Disconnect the coolant hose (A).
|
| 8. | Disconnect the turbo charger water drain hose (A).
|
| 9. | Remove the turbo manifold module heat protector (A).
|
| 10. | Remove the turbo charger water pipe (B).
|
| 11. | Remove the heat protector (A) and engine hanger (B).
|
| 12. | Remove the high pressure fuel pump.
(Refer to Engine Control / Fuel System - "High Pressure Fuel Pump")
|
| 13. | Remove the ignition coil.
(Refer to Engine Electrical System - "Ignition Coil")
|
| 14. | Disconnect the positive crankcase ventilation (PCV) hose (A).
|
| 15. | Remove the cylinder head cover (A) with gasket.
|
| Installation |
| 1. | Install the new cylinder head cover gasket (A).
|
| 2. | The
hardening sealant on the upper area between chain cover & oil pump
assembly and cylinder head should be removed before assembling cylinder
head cover. |
| 3. | Assemble within 5 minutes of applying sealant.
|
| 4. | Install the cylinder head cover (A).
|
| 5. | Install the cylinder head cover bolts in the following two step method.
|
| 6. | Install the remaining parts in the reverse order of removal. |
