| Removal and Installation |
| 1. | Remove the engine room under cover and RH side cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
| 2. | Remove the drive belt.
(Refer to Drive Belt System - "Drive Belt")
|
| 3. | Remove the RH side front wheel.
(Refer to Suspension System - "Wheel")
|

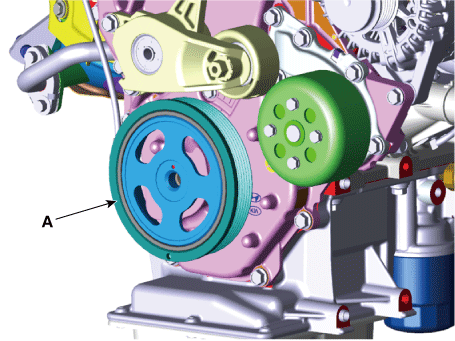

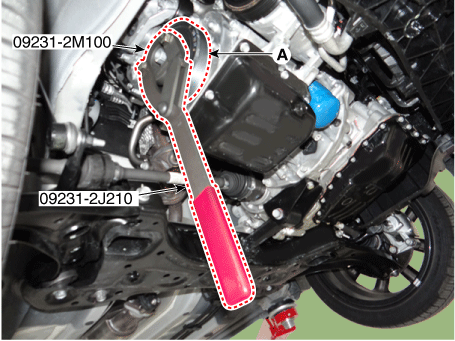

| 4. | Remove the crankshaft damper pulley.
|
| 5. | Install in the reverse order of removal. |
| Inspection |
