| Components |

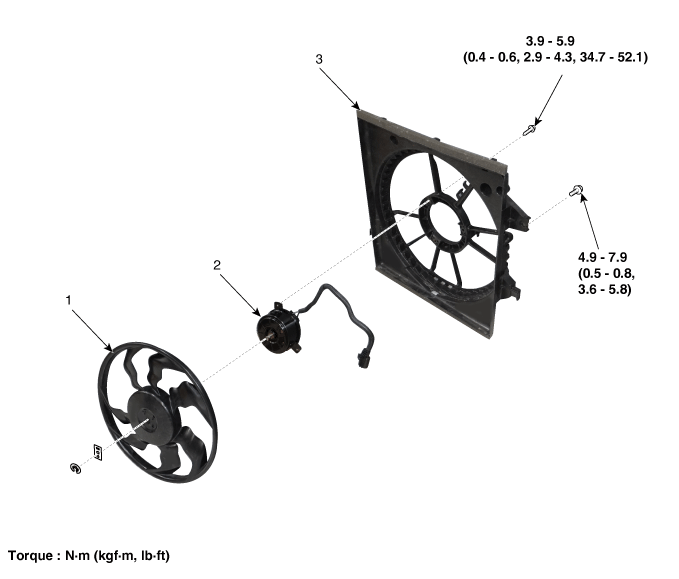

| 1. Cooling fan 3. Cooling fan motor | 3. Cooling fan shroud |
| Specifications |
|
Item
|
Specification
|
| Fan type | Puller |
| Fan speed control | ON - OFF |
| Air flow rate [㎥/h] | 1,570 - 8% min. |
| Fan speed (rpm) | 1,960 ± 8% |
| Current (A) | 10.0 + 10% max. |
| Description |

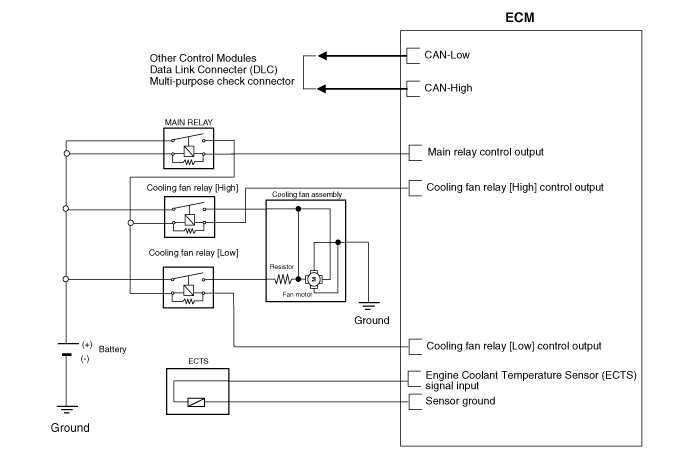

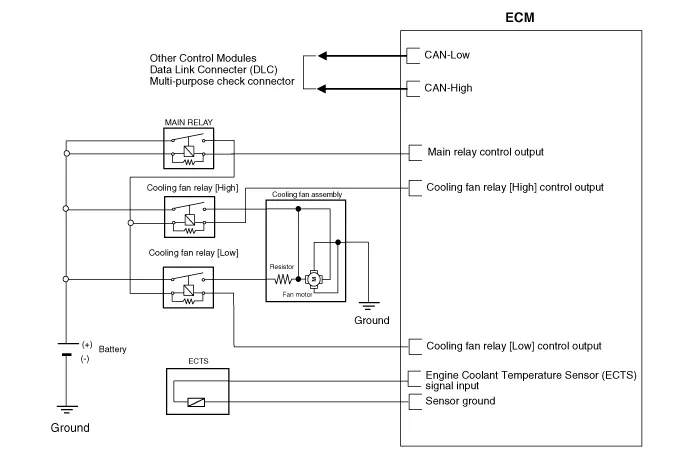

| Circuit Diagram |

| Removal and Installation |
| 1. | Remove the radiator.
(Refer to Cooling System - "Radiator")
|

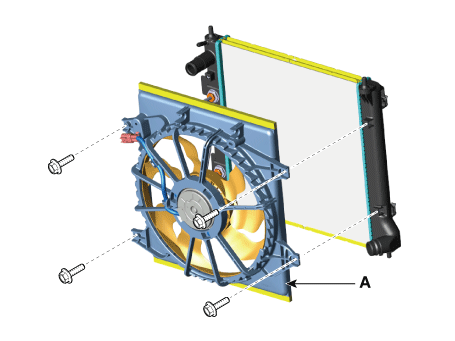

| 2. | Remove the cooling fan assembly (A) from the radiator.
|
| 3. | Install in the reverse order of removal. |
| Disassembly |

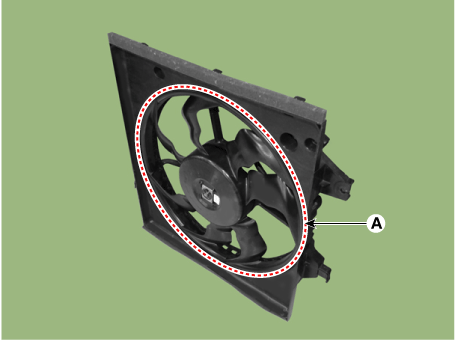

| 1. | Remove the cooling fan (A) from the cooling fan assembly.
|

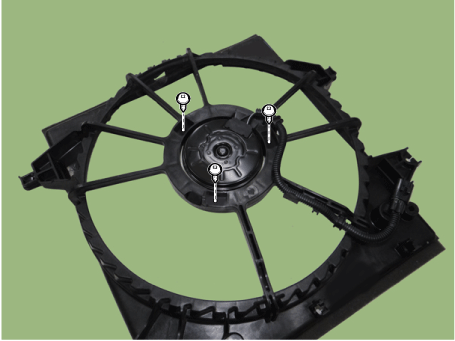

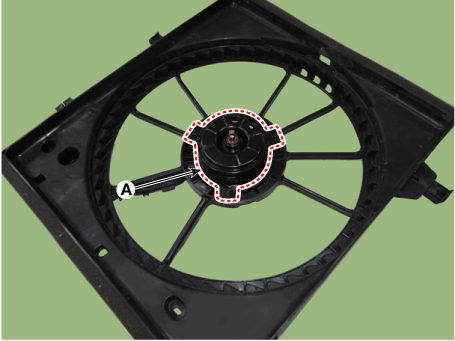

| 2. | Remove the fan motor (A) from the cooling fan shroud.
|
| 3. | Assemble in the reverse order of disassembly. |
| Inspection |
| 1. | Disconnect the fan motor connector. |
| 2. | Connect the battery voltage to the "+" terminal and ground to "-" terminal. |
| 3. | Check the cooling fan motor operates well. |
