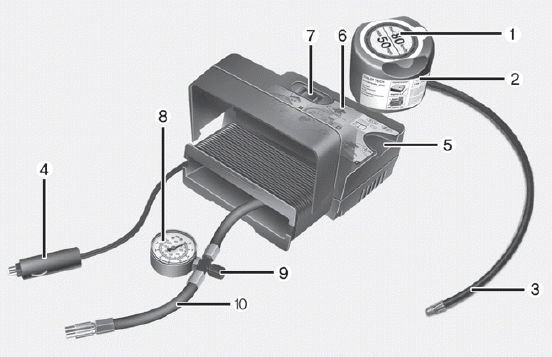

Kia Picanto: If you have a flat tire (with tire mobility kit) (Type A) / Components of the Tire Mobility Kit (TMK)
1. Speed restriction label
2. Sealant bottle and label with speed
restriction
3. Filling hose from sealant bottle to
wheel
4. Connectors and cable for the power
outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. On/off switch
8. Pressure gauge for displaying the
tire inflation pressure
9. Screw cap for reducing tire inflation
pressure
10. Hose to connect compressor and
sealant bottle or compressor and
wheel
Connectors, cable and connection hose are stored in the compressor housing.
WARNING
Before using the Tire Mobility Kit, follow the instructions on the sealant bottle.
Remove the label with the speed restriction from the sealant bottle and apply it to the steering wheel. Please note the expiry date on the sealant bottle.
Introduction
With the Tire Mobility Kit (TMK) you
stay mobile even after experiencing a
tire puncture.
The system of compressor and sealing
compound effectively and comfortably
seals most punctures in a ...
Using the Tire Mobility Kit
1. Detach the speed restriction label
(1) from the sealant bottle (2), and
place it in a highly visible place inside
the vehicle such as on the
steering wheel to remind the driver
not to dri ...
