Description and operation

Description

This has particle filter which eliminates foreign materials and odor. The particle filter includes odor filter as well as conventional dust filter to ensure comfortable interior environment.

Repair procedures

Replacement

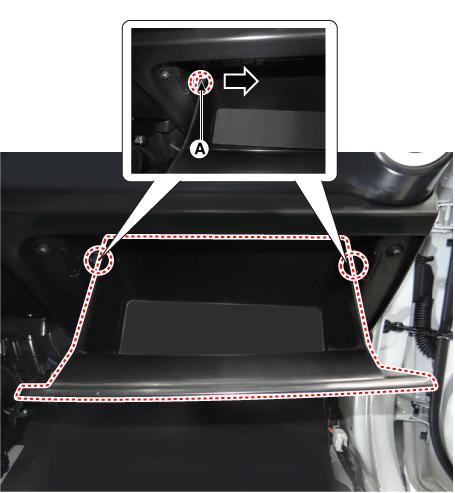

1.	Remove the stopper (A) from the glove box.

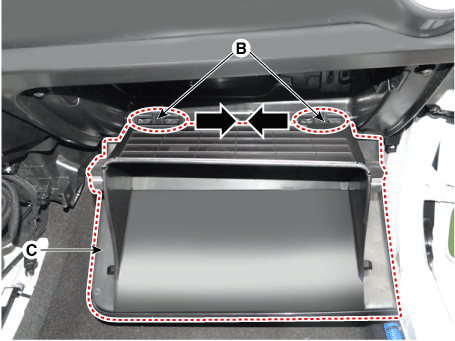

2.	Disconnect the pins (B) and then remove the glove box (C).

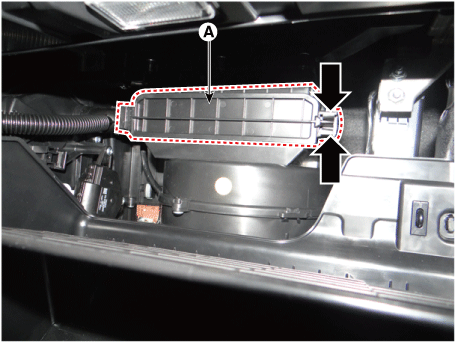

3.	Remove the filter cover (A) by pressing the knob.

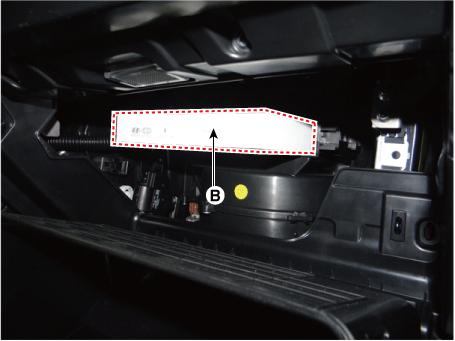

Replace the air filter (B) according to the replacement cycle on the user manual. When replacing it, mind the direction of the air filter.

•	To remove the filter easily, press the righthand side inward and then pull out the filter.

•	When driving in an air-polluted area or on rugged terrain, check and replace the air filter as frequently as possible.

5.	Install in the reverse order of removal.
