Kia Picanto: Engine Control System / Boost Pressure Sensor (BPS)
Specifications
▷ Type: Piezo-resistive pressure sensor type
Pressure
[kPa (kg/cm² / psi)]
|
Output Voltage (V) [Vref=5V]
|
32.5 (0.33, 4.71)
| 0.5
|
284 (2.90, 41.19)
| 4.5
|
Description and operation
Installed

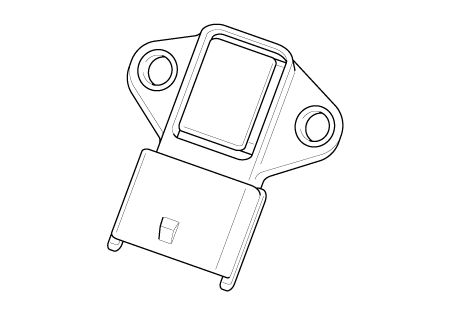

on the intercooler assembly, the Boost Pressure Sensor (BPS) measures
the pressure of the compressed air in turbocharger.

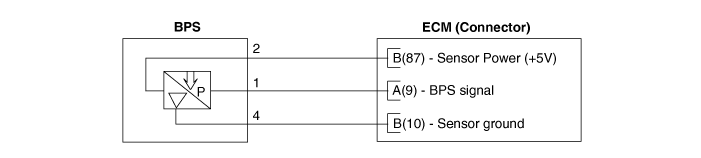

Schematic diagrams
Repair procedures
| 1. | Connect a KDS on the Data Link Connector (DLC). |
| 2. | Measure the output voltage of the BPS at idle and IG ON.
Pressure
[kPa (kg/cm² / psi)]
|
Output Voltage (V) [Vref=5V]
| 32.5 (0.33, 4.71)
| 0.5
| 284 (2.90, 41.19)
| 4.5
|
|
| 1. | Turn the ingnition switch OFF and disconnect the battery negative (-) terminal. |

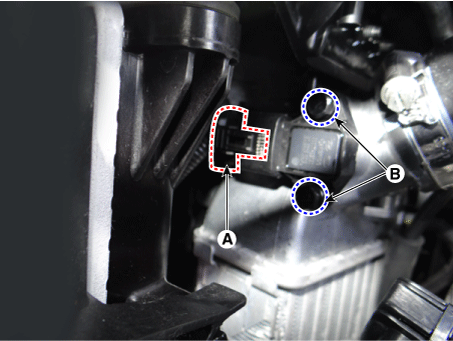

| 2. | Disconnect the boost pressure sensor connector (A). |
| 3. | Remove the sensor by loosening the mounting bolts (B).
Boost pressure sensor mounting bolt :
6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft) |
 |
| •
| Install the component to the specified torques. |
| •
| Note
that internal damage may occur when the component is dropped. If the
component has been dropped, inspect before installing. |
|
| 1. | Install in the reverse order of removal. |
