Kia Picanto (JA): Blower / Blower Motor
Repair procedures
| Inspection |
| 1. | Connect the battery voltage and check the blower motor rotation.
|
| 2. | If the blower motor voltage is not operated well, substitute with a known-good blower motor and check for proper operation. |
| 3. | If the problem is corrected, replace the blower motor. |
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |

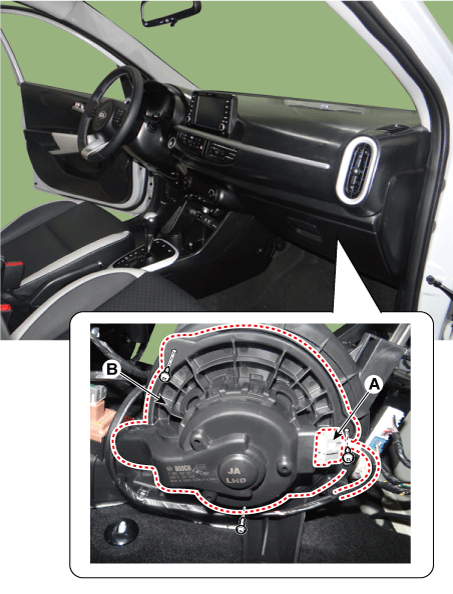

| 2. | Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
|
| 3. | Install in the reverse order of removal. |
Components and components location Component Location 1. Blower Unit Components 1. Intake Actuator 2. Intake Case [Lower] 3. Air Filter 4.
Repair procedures Inspection 1.Measure terminal - to - terminal resistance of blower resistor. 2.measured resistance is not within specification, the blower resistor must be replaced.
