Kia Picanto: Body Electrical System / Back View Camera System

Kia Picanto JA 2017-2024 Service & Repair Manual / Body Electrical System / Back View Camera System

Components and components location

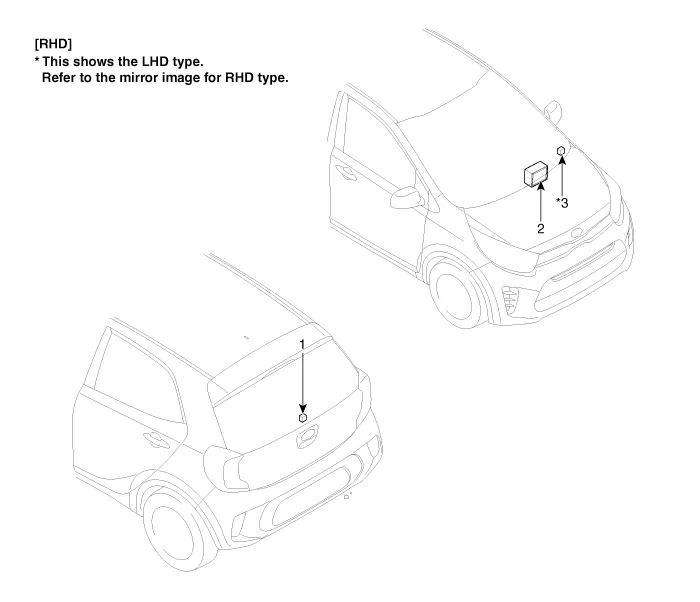

Component Location

1. Back view camera
2. AVN head unit
3. steering angle sensor

Description and operation
Description
1.
To display back of the vehicle to assist the driver, it receives vehicle rearside image signal from the rearview camera and displays it on AVN head unit monitor or LHS of inside rearview mirror.
2.
Back view camera is a supplementary device that displays dead zone on monitor screen that automatically operates when the gear stays in "R" for over 3 seconds.
3.
It displays the estimated trajectory with parking guideline in accordance with the operating angle of steering wheel. (There is no separate unit.)

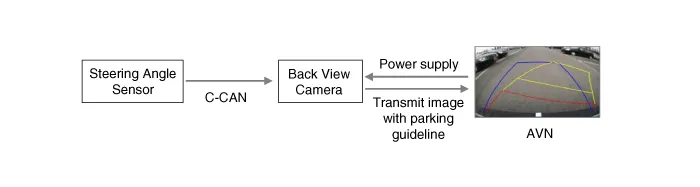

System Structure (Back view camera operated by steering)

Schematic diagrams
Circuit Diagram

Repair procedures
Removal

In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
3.
Disconnect the tailgate outside handle assembly connector (A).

4.
Remove the tailgate outside handle assembly (A) after loosening the mounting nuts.

5.
Disconnect the tailgate open switch connector (A).

6.
Remove the back view camera assembly (A) after loosening the mounting screws.

Installation
1.
Install the back view camera assembly.
2.
Connect the tailgate open switch connector.
3.
Install the tailgate outside handle assembly.
4.
Connect the tailgate outside handle assembly connector.
5.
Install the tailgate trim.
6.
Connect the negative (-) battery terminal.
