Kia Picanto: LCD windows / Trip information

Kia Picanto JA 2017-2025 Owner's Manual / Features of your vehicle / LCD windows / Trip information

The trip computer is a microcomputercontrolled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer (for example Average Vehicle Speed) resets if the battery is disconnected.

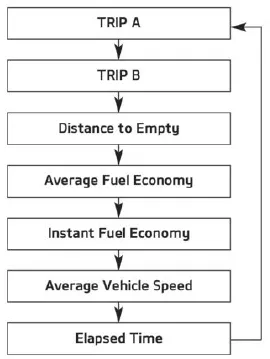

Trip Modes

To change the trip mode, scroll the MOVE scroll switch ( / ) or TRIP button in the trip computer mode.

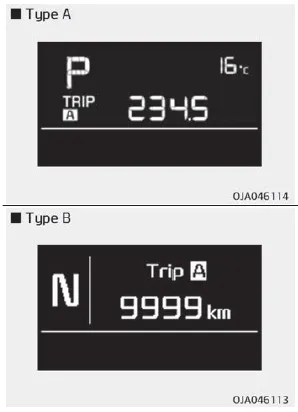

Trip A/B

Tripmeter

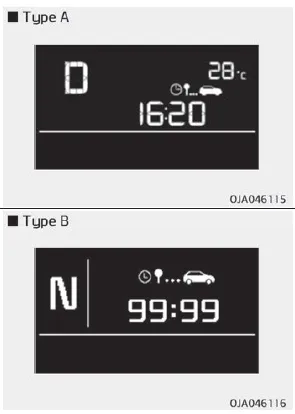

Elapsed Time

NOTICE

Even if the vehicle is not in motion, the elapsed time keeps going while the engine is running.

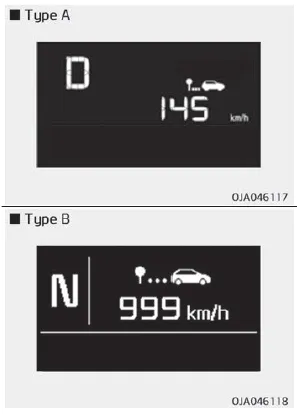

Average Vehicle Speed

NOTICE

Fuel economy

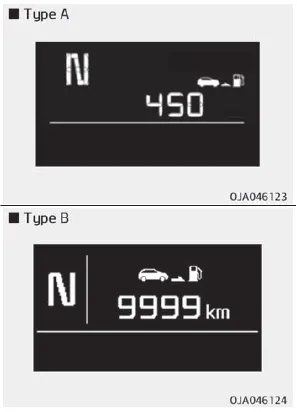

Distance To Empty

NOTICE

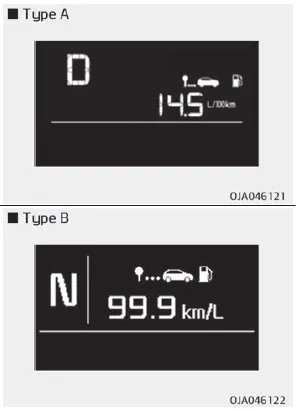

Average Fuel Economy

Manual reset

To clear the average fuel economy manually, press the RESET button or OK button on the steering wheel for more than 1 second when the average fuel economy is displayed.

LCD windows
Over view LCD windows show the following various information to drivers. - Trip information - LCD modes - Warning messages ...

Automatic reset (for type B cluster)
To make the average fuel economy be reset automatically whenever refueling, select the “Fuel economy auto reset” mode in User Setting menu of the LCD Windows (Refer to “LCD Windows” on ...
