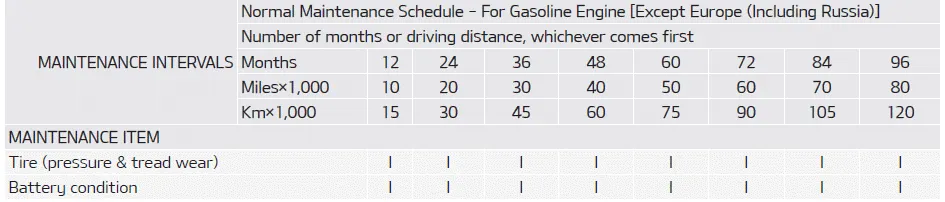

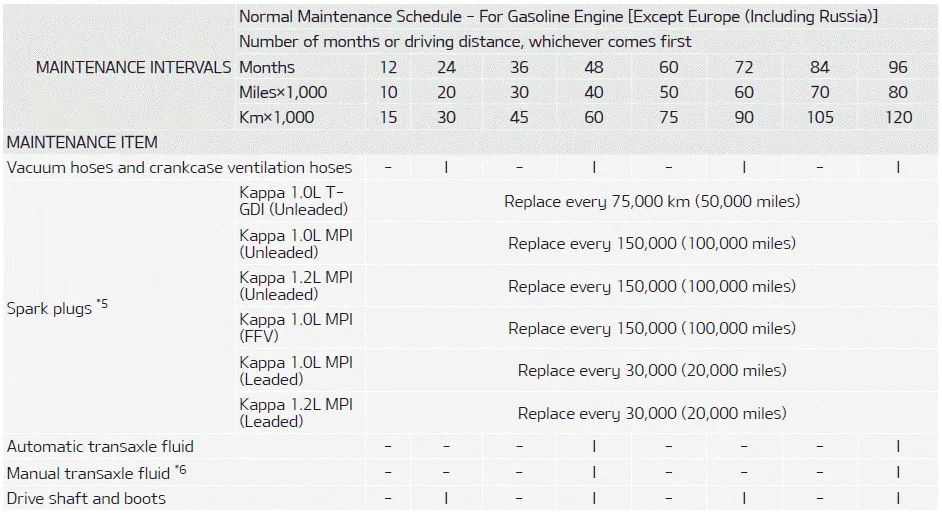

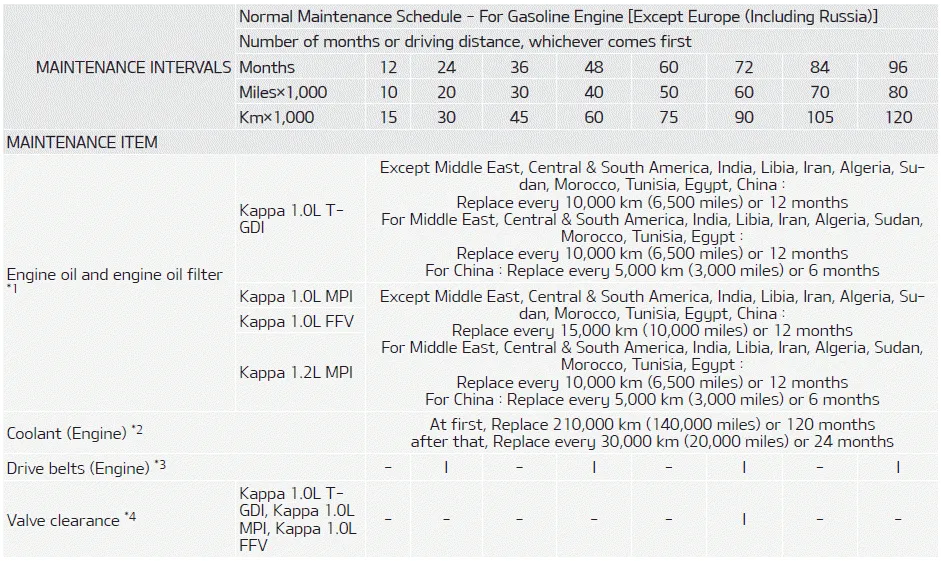

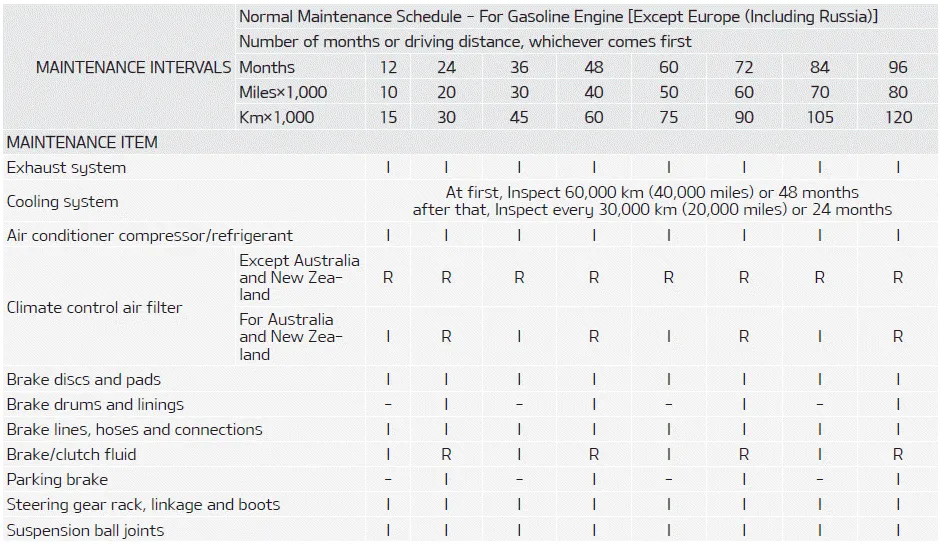

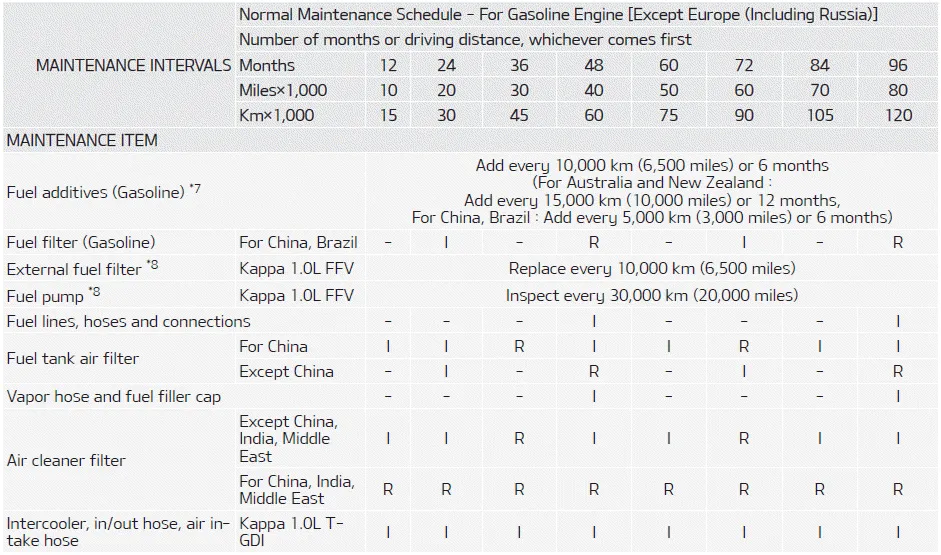

Kia Picanto (JA): Scheduled maintenance service / Normal Maintenance Schedule - For Gasoline Engine [Except Europe (Including Russia)]
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is determined by whichever occurs first.
I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
Maintenance operation I : Inspect and if necessary, adjust, correct, clean or replace. R : Replace or change. SEVERE DRIVING CONDITIONS A: Repeatedly driving short distance of less than 8 km (5 miles) in normal temperature or less than 16 km (10 miles) in freezing temperature.
Maintenance operation I : Inspect and if necessary, adjust, correct, clean or replace. R : Replace or change. SEVERE DRIVING CONDITIONS A: Repeatedly driving short distance of less than 8 km (5 miles) in normal temperature or less than 16 km (10 miles) in freezing temperature.
