Kia Picanto (JA): Scheduled maintenance service / Maintenance Under Severe Usage Conditions - For Gasoline Engine [For Europe (Except Russia)]

Kia Picanto (JA) 2017-2026 Owner's Manual / Maintenance / Scheduled maintenance service / Maintenance Under Severe Usage Conditions - For Gasoline Engine [For Europe (Except Russia)]

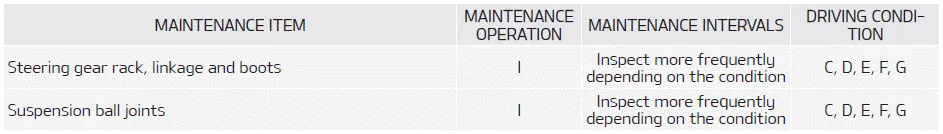

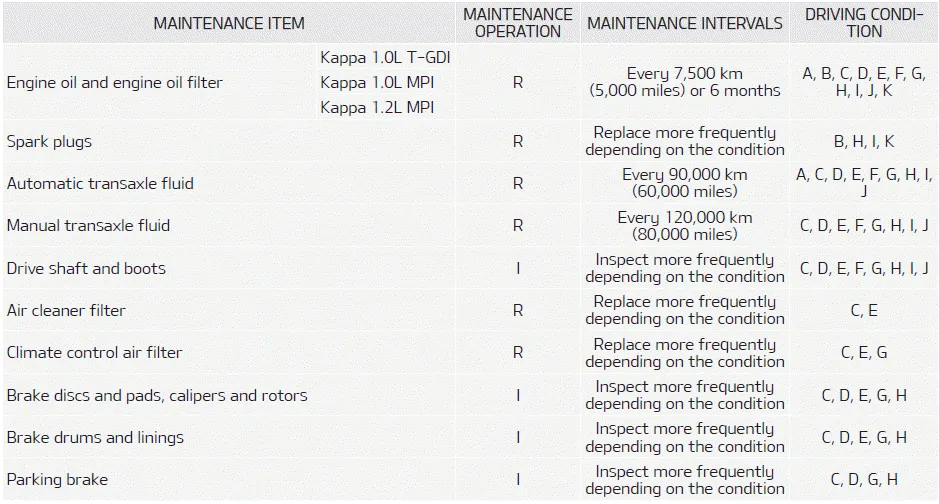

Maintenance operation

I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

SEVERE DRIVING CONDITIONS

A: Repeatedly driving short distance of less than 8 km (5 miles) in normal temperature or less than 16 km (10 miles) in freezing temperature.
B: Extensive engine idling or low speed driving for long distances.
C: Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads.
D: Driving in areas using salt or other corrosive materials or in very cold weather
E: Driving in heavy dust condition.
F: Driving in heavy traffic area.
G: Driving on uphill, downhill, or mountain roads repeatedly.
H: Towing a trailer or using a camper on roof rack.
I: Driving for patrol car, taxi, commercial use of vehicle towing.
J: Driving over 170 km/h (106 mph)
K: Frequently driving in stop-and-go conditions.

    The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty.

    The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty.
