Kia Picanto: Fuses / Fuse/relay panel description
![](images/fuse_relay_panel_description-288/1/page_368.png)
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
panel in your vehicle, refer to the
fuse panel label.

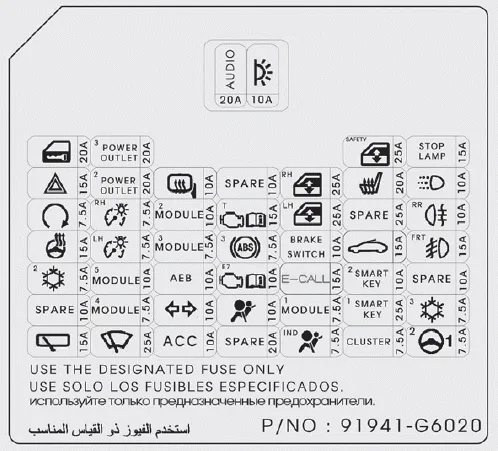

Driver’s side fuse panel
![](images/fuse_relay_panel_description-288/1/page_118.png)

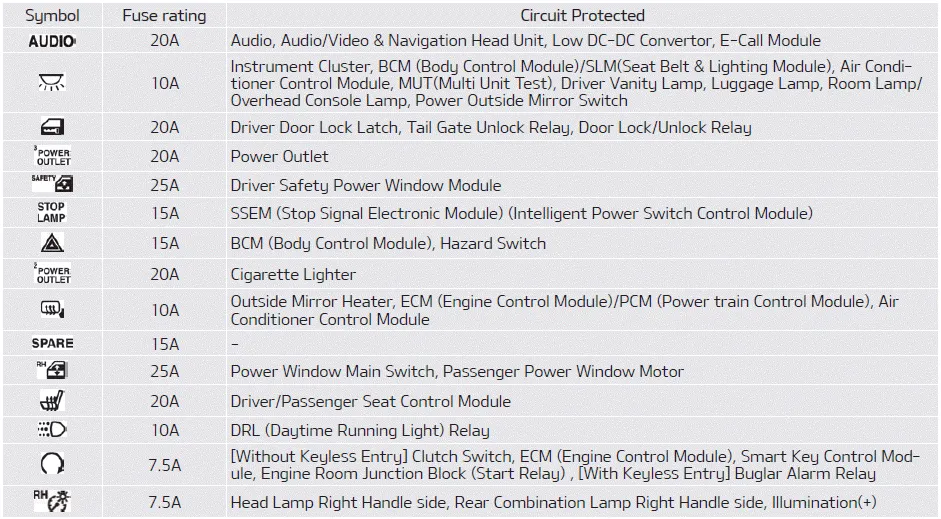

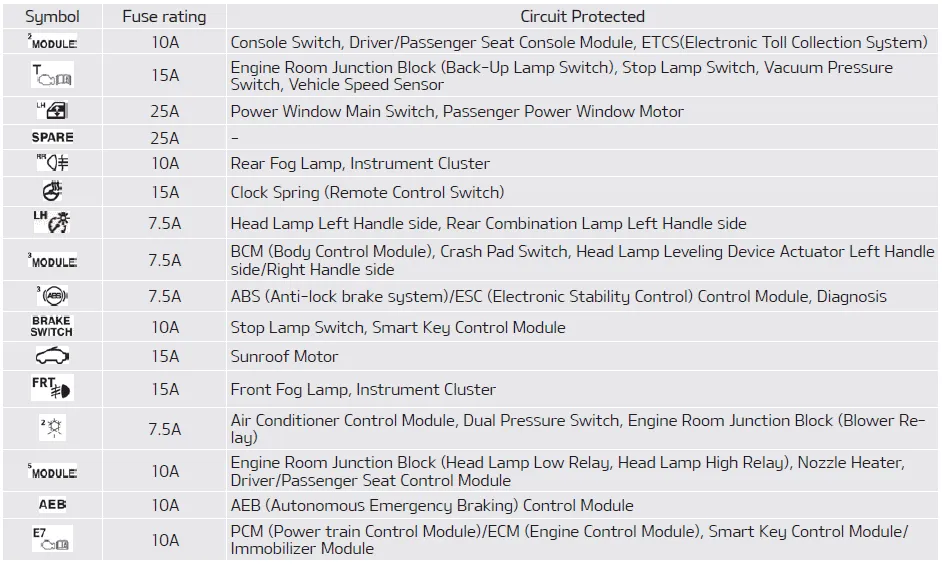

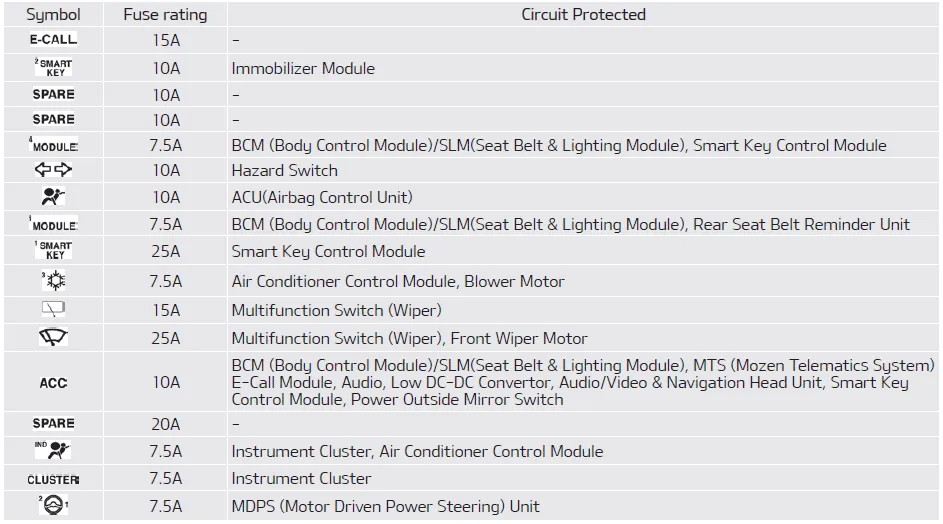

Instrument panel (Driver’s side fuse
panel)
![](images/fuse_relay_panel_description-288/1/page_278.png)
![](images/fuse_relay_panel_description-288/1/page_328.png)
![](images/fuse_relay_panel_description-288/1/page_381.png)
Engine compartment fuse panel
![](images/fuse_relay_panel_description-288/1/page_202.png)

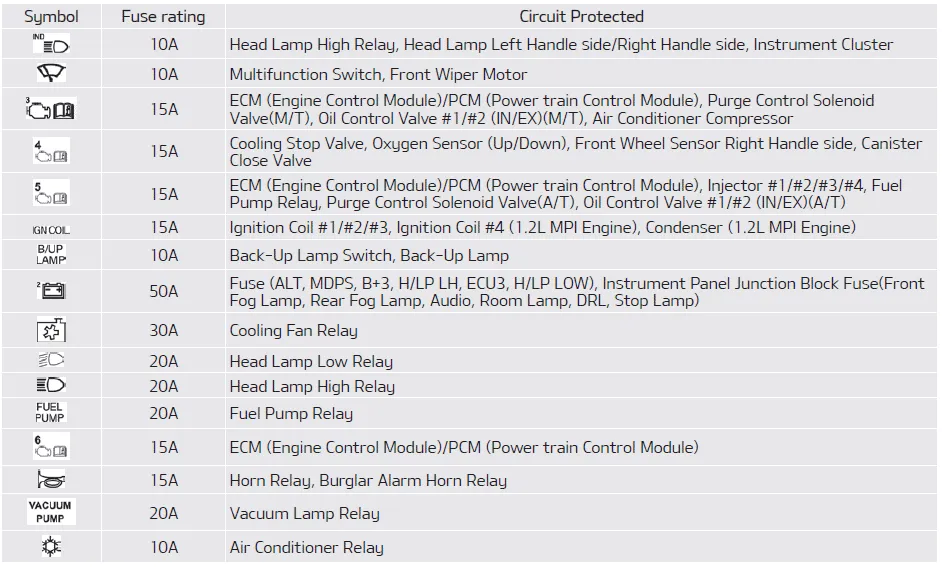

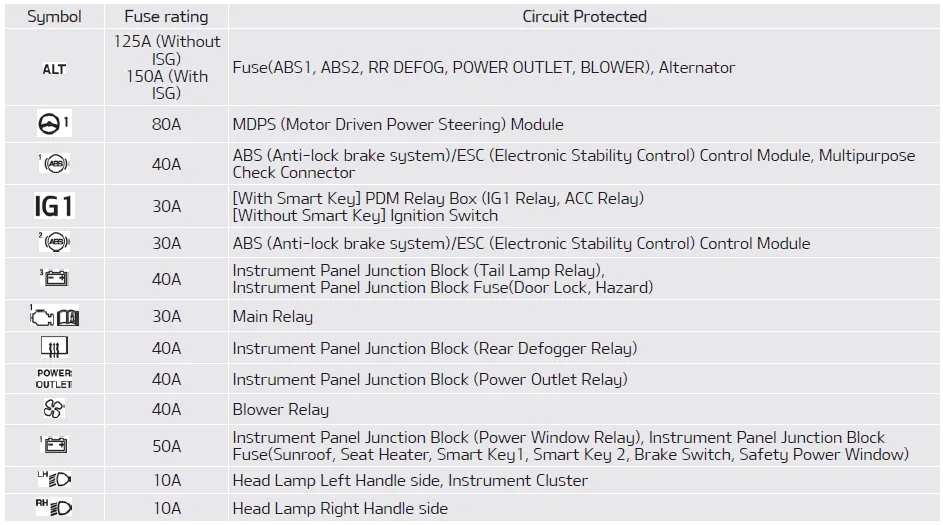

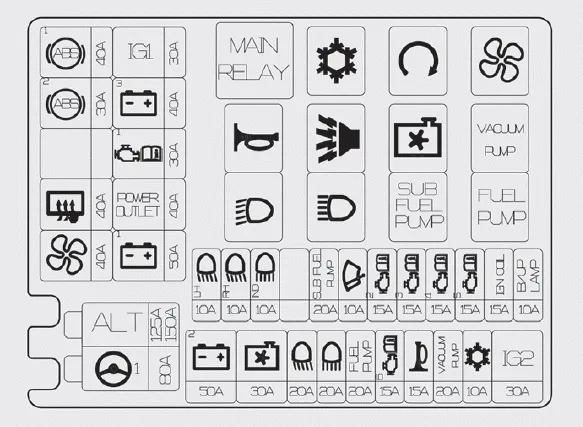

Engine room compartment fuse panel
(Kappa 1.0L/1.2L MPI Engine (Gasoline))
![](images/fuse_relay_panel_description-288/1/page_158.png)
![](images/fuse_relay_panel_description-288/1/page_295.png)
![](images/fuse_relay_panel_description-288/1/page_303.png)

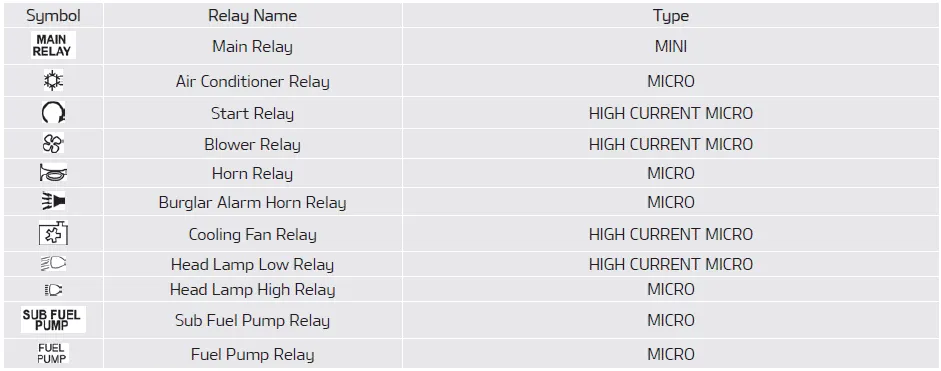

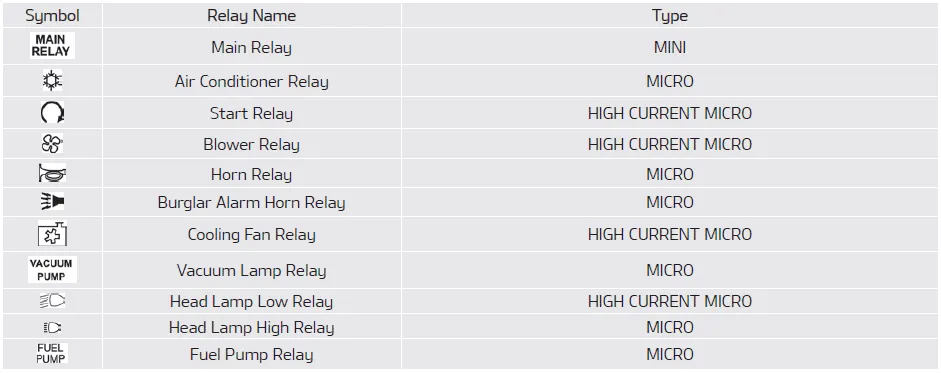

Relay (Kappa 1.0L/1.2L MPI Engine
(Gasoline))
![](images/fuse_relay_panel_description-288/1/page_350.png)

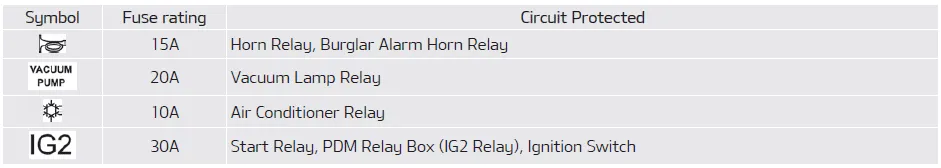

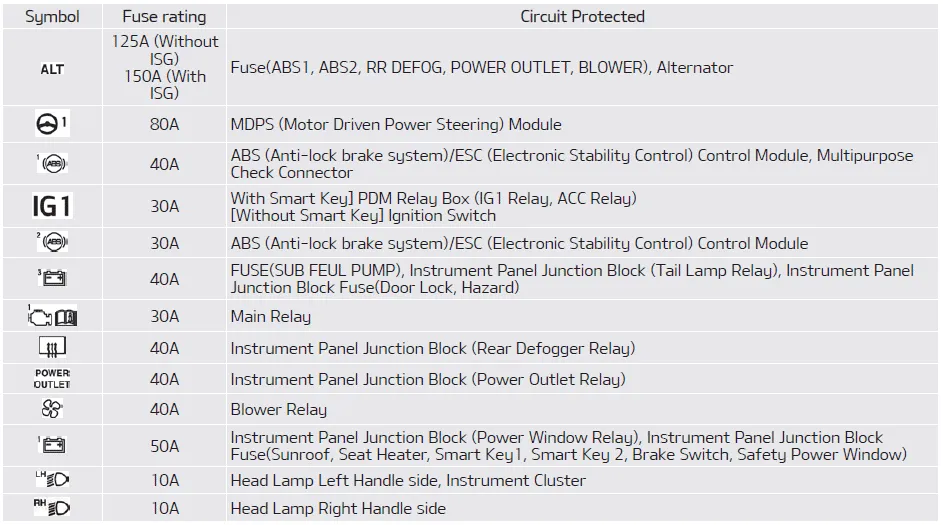

Engine room compartment fuse panel
(Kappa 1.0L MPI Engine (FFV))
![](images/fuse_relay_panel_description-288/1/page_033.png)
![](images/fuse_relay_panel_description-288/1/page_339.png)
![](images/fuse_relay_panel_description-288/1/page_139.png)
Relay (Kappa 1.0L MPI Engine (FFV))
![](images/fuse_relay_panel_description-288/1/page_307.png)
1. Turn the ignition switch and all other
switches off.
2. Remove the fuse panel cover by
pressing the tab and pulling the
cover up. When the blade type fuse
is disconnected, remove it by u ...
