Kia Picanto (JA): Cruise control system / To resume cruising speed at more than approximately 30 km/h (20 mph)

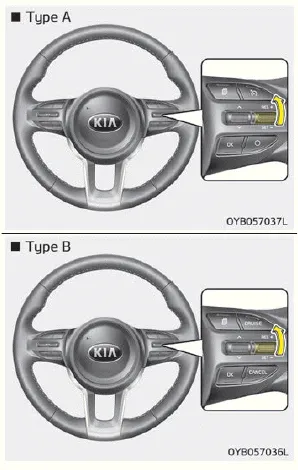

If any method other than the cruise / CRUISE button was used to cancel cruising speed and the system is still activated, the most recent set speed will automatically resume when you move the lever up (to RES+).
It will not resume, however, if the vehicle speed has dropped below approximately 30 km/h (20 mph).
To turn cruise control off, do one of the following:
- Press the cruise
/ CRUISE
button
(the cruise indicator light will be turn
off). - Turn the ignition off.
Both of these actions cancel cruise control operation. If you want to resume cruise control operation, repeat the steps provided in “To set cruise control speed” on page 6-42 .
Depress the brake pedal. Depress the clutch pedal if equipped with a manual transaxle. Shift into N (Neutral) if equipped with an automatic transaxle.
You can set the speed limit when you do not want to drive over a specific speed. If you drive over the preset speed limit, the warning system operates (set speed limit will blink and chime will sound) until the vehicle speed returns within the speed limit.
