Components and components location

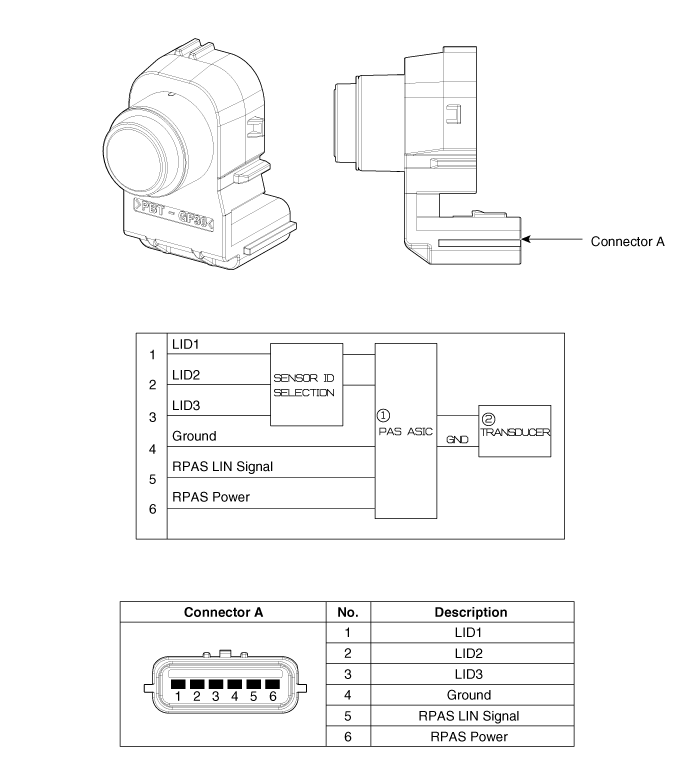

Components

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear bumper assembly. (Refer to Body - "Rear Bumper Assembly")

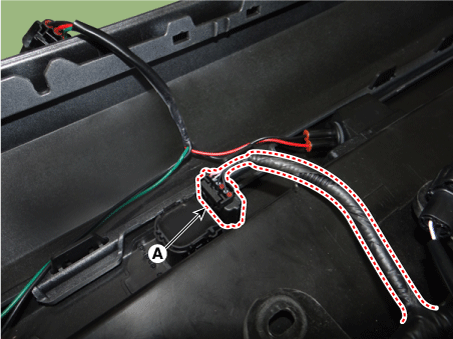

3.	Disconnect the connector (A) from the ultrasonic sensor.

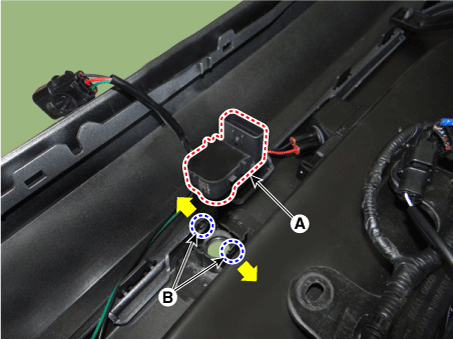

4.	Pull out ths ultrasonic sensor (A) by opening the sensor holder (B) out.

Installation

1.	Install the ultrasonic sensor and connector.

2.	Install the rear bumper assembly.

3.	Connect the negative (-) battery terminal.
